Sea Eagle FCRO

SeaEagle FCRO

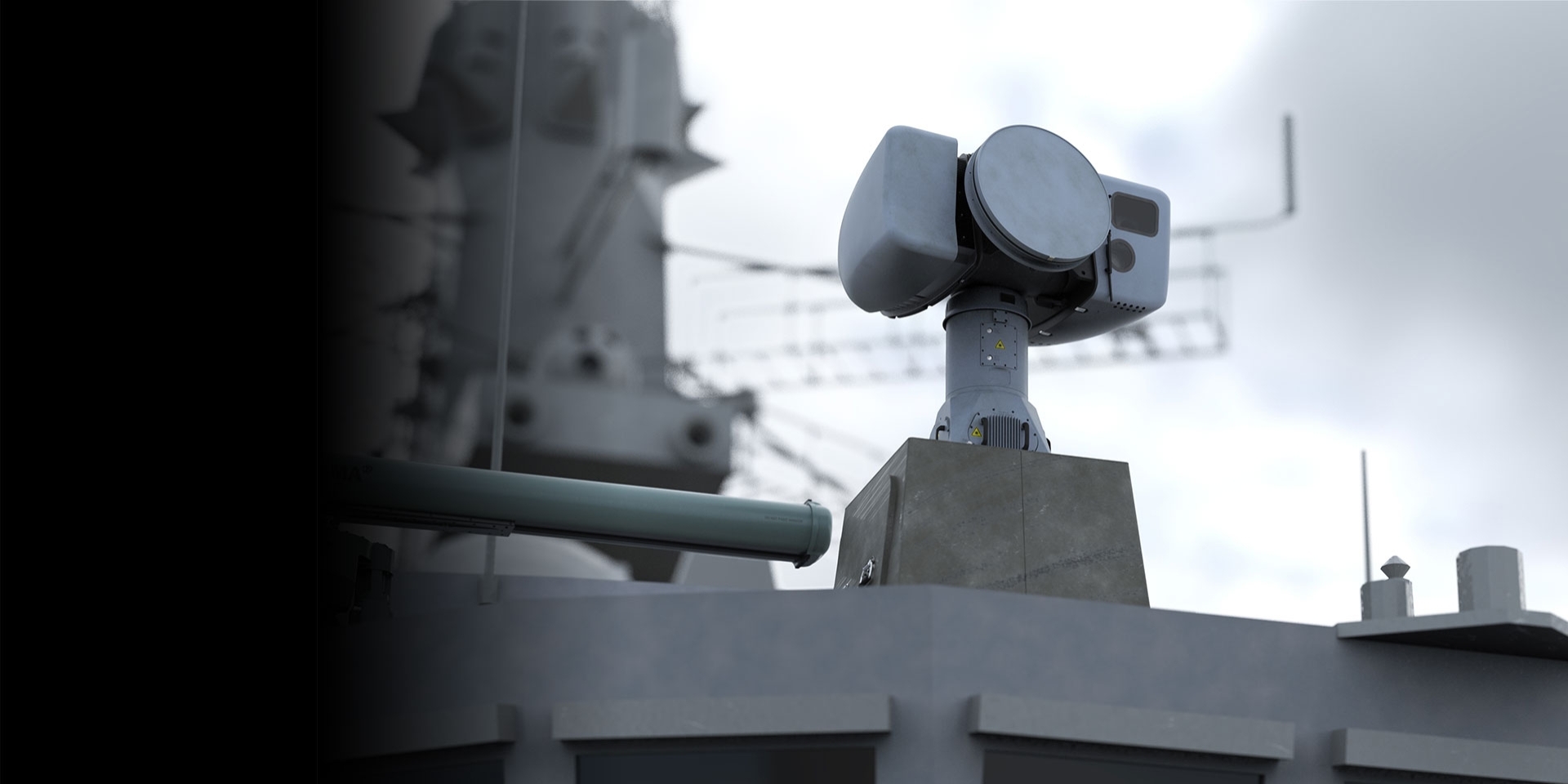

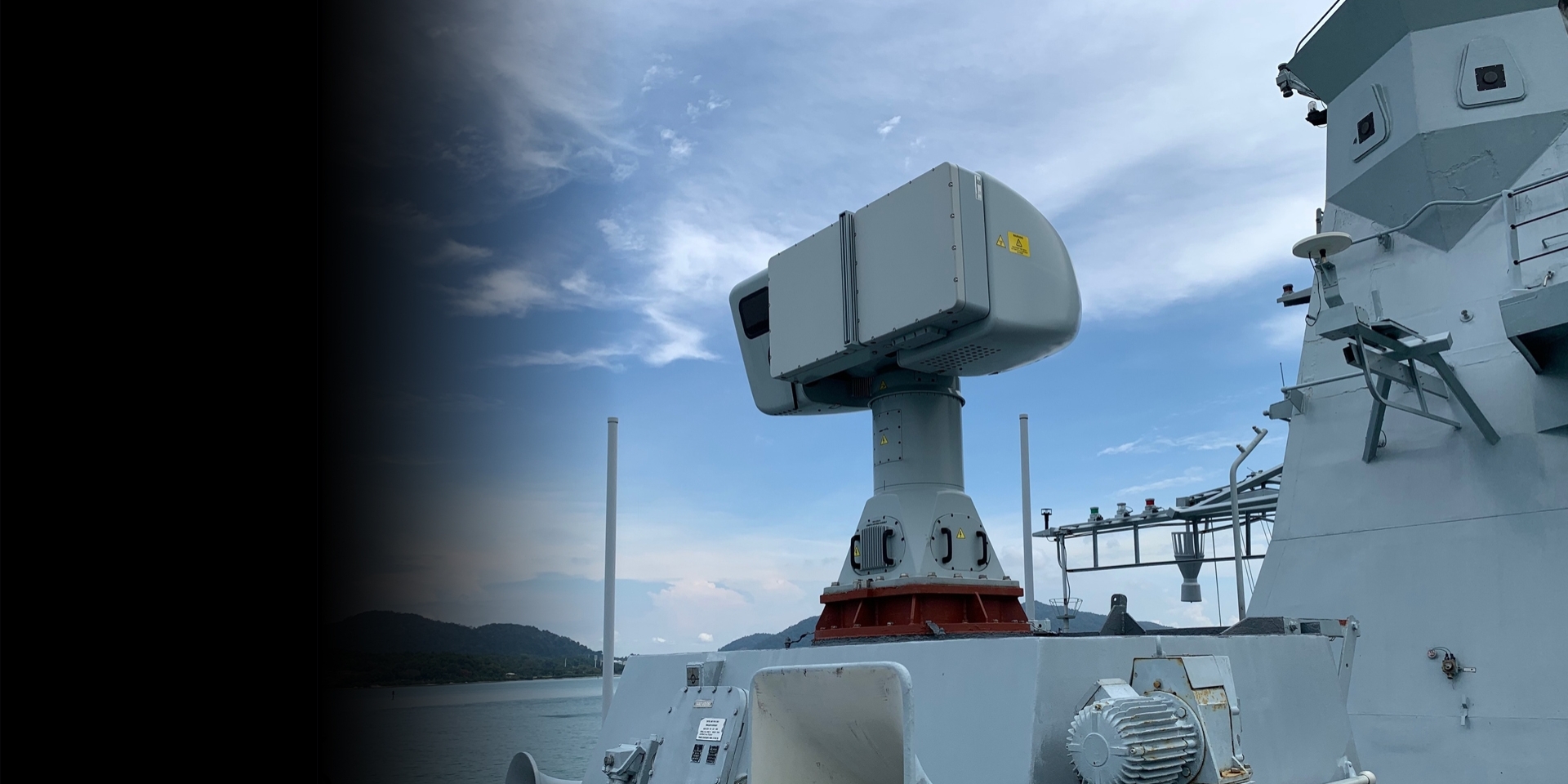

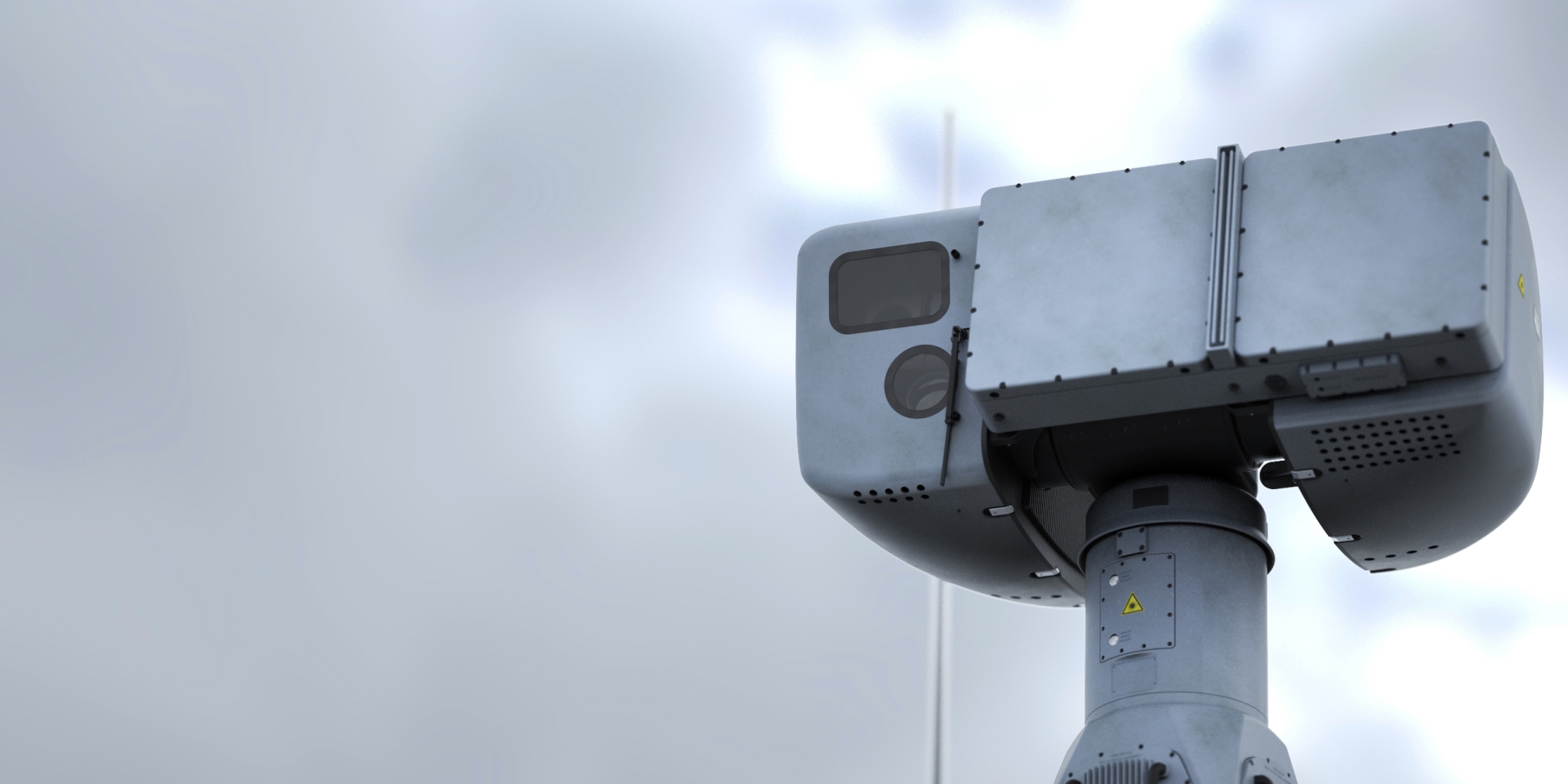

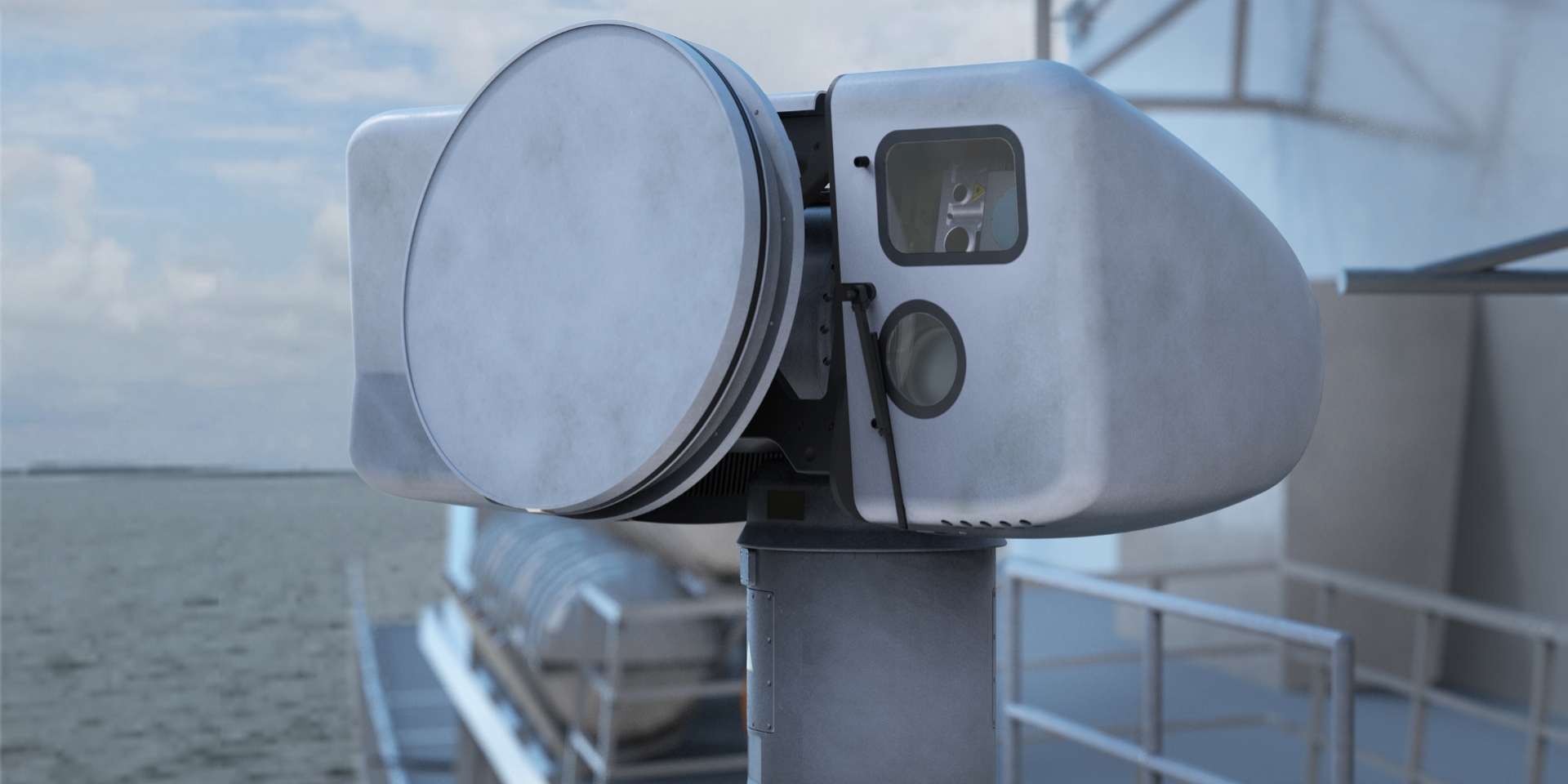

Our Radar Fire Control (SeaEagle FCRO) is an advanced radar and electro optical fire control system optimised for the control of naval guns against air, surface, and shore targets.

Capable of controlling any in-service naval gun, our SeaEagle FCRO systems provide 24-hour long range, detection, acquisition, tracking and engagement of air and surface targets through the use of Weibel’s advanced FMCW (Frequency Modulation Continuous Wave) Doppler radar with target identification provided by Chess’ thermal imager and daylight TV camera.

FMCW Doppler radar provides long range acquisition and precision tracking of multiple targets
The radar has low probability of intercept and high resistance to ECM through very low transmitted power and frequency agility
24-hour target identification by long range thermal imager and daylight TV camera
Automated slewing to search radar contact indications
Automatic target acquisition and tracking in both radar and EO
Anti-air, anti-surface, naval gunfire support direct and naval gunfire support indirect engagement modes
Point mass model based ballistic prediction for all calibres of naval guns including extended range ammunition
Splash spotting by both radar and EO sensors
24-hour passive surveillance through high performance thermal imager and TV camera
Scanning of programmable azimuth sectors with automatic target detection
Display of a panoramic view of the scanned sector with marked detected targets
Automated capture of target snap-shot images
Designed to be operated as a fully integrated element of a multi-function console-based combat system or through a dedicated stand-alone console.
