Vision4ce Legacy Products

Legacy CHARM products are not recommended for new designs.

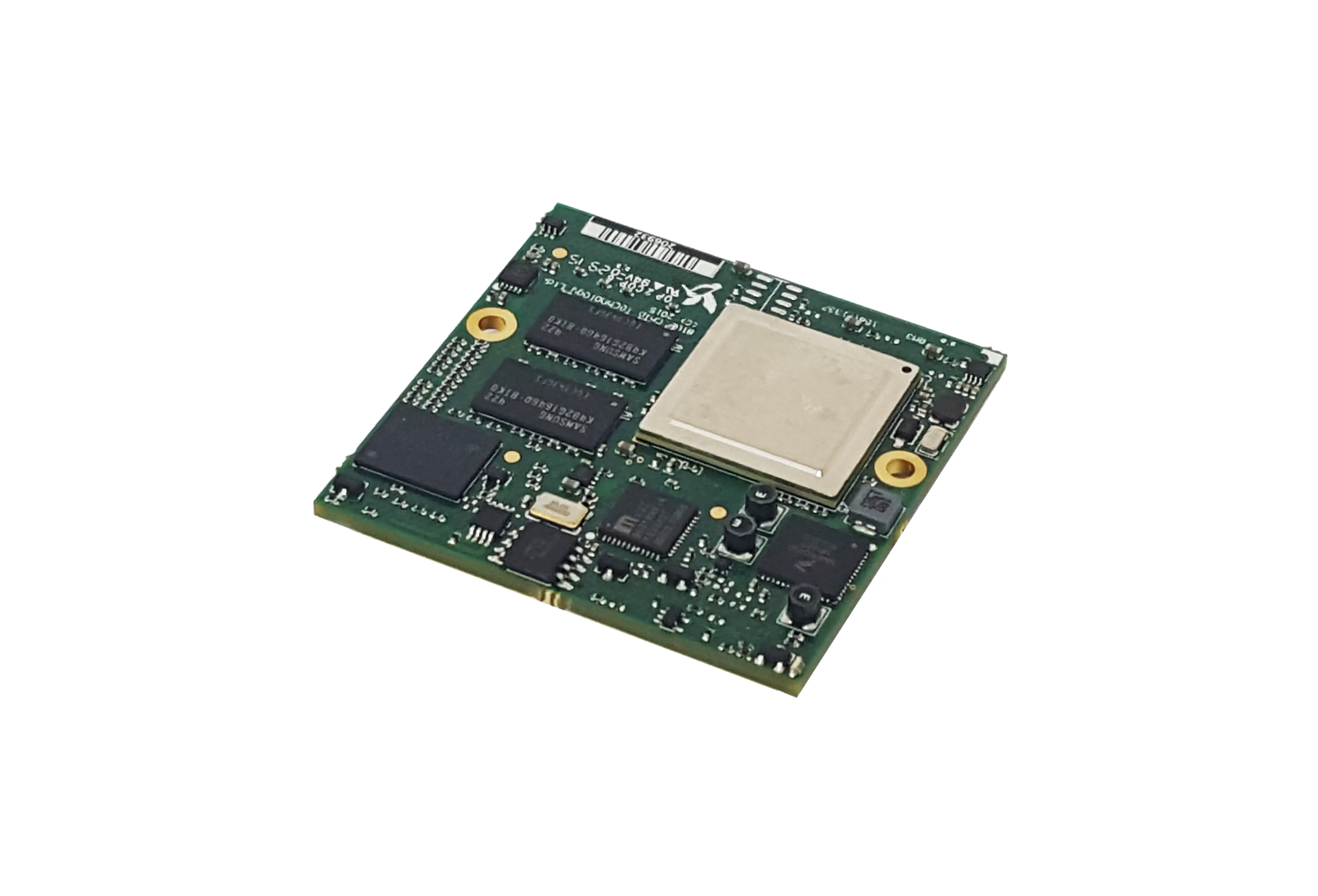

Chess Dynamics Vision4ce CHARM Module

CHARM Module

Embedded tracker module



  • Size: 50mm x 50mm
  • Processing Channels: 1
  • Video Inputs: 1 x Parallel Digital
  • Video Outputs: 1 x Parallel, 1 x HDMI
  • Data Interfaces: 2 x UART, 1 x Ethernet

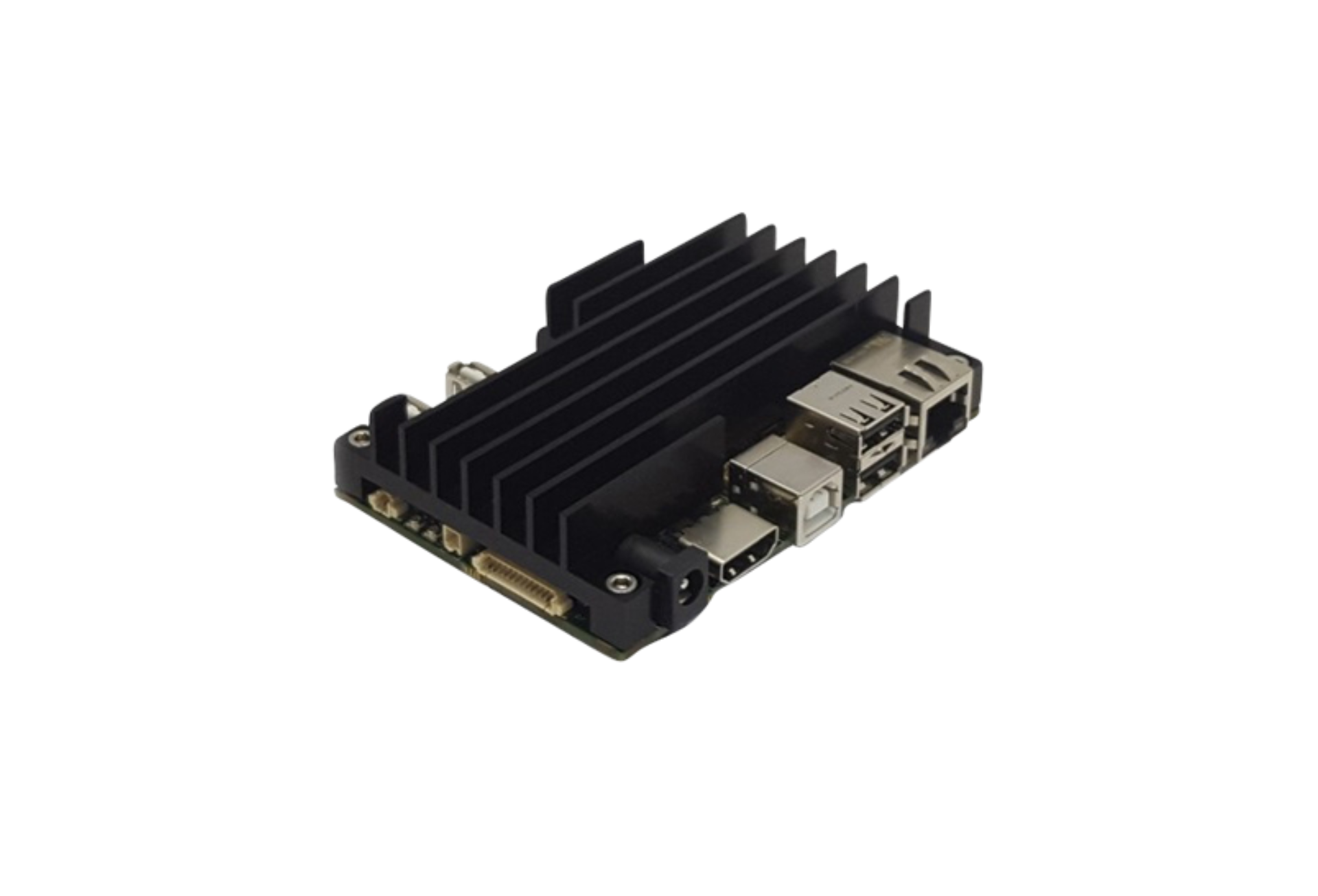

CHARM70 (EOL)

Standalone video tracker board



  • Size: 70mm x 100mm
  • Processing Channels: 1
  • Video Inputs: 2 x PAL/NTSC
  • Video Outputs: 1 x HDMI
  • Data Interfaces: 1 x RS232, 1 x RS422, 1 x Ethernet
Chess Dynamics Vision4ce CHARM70

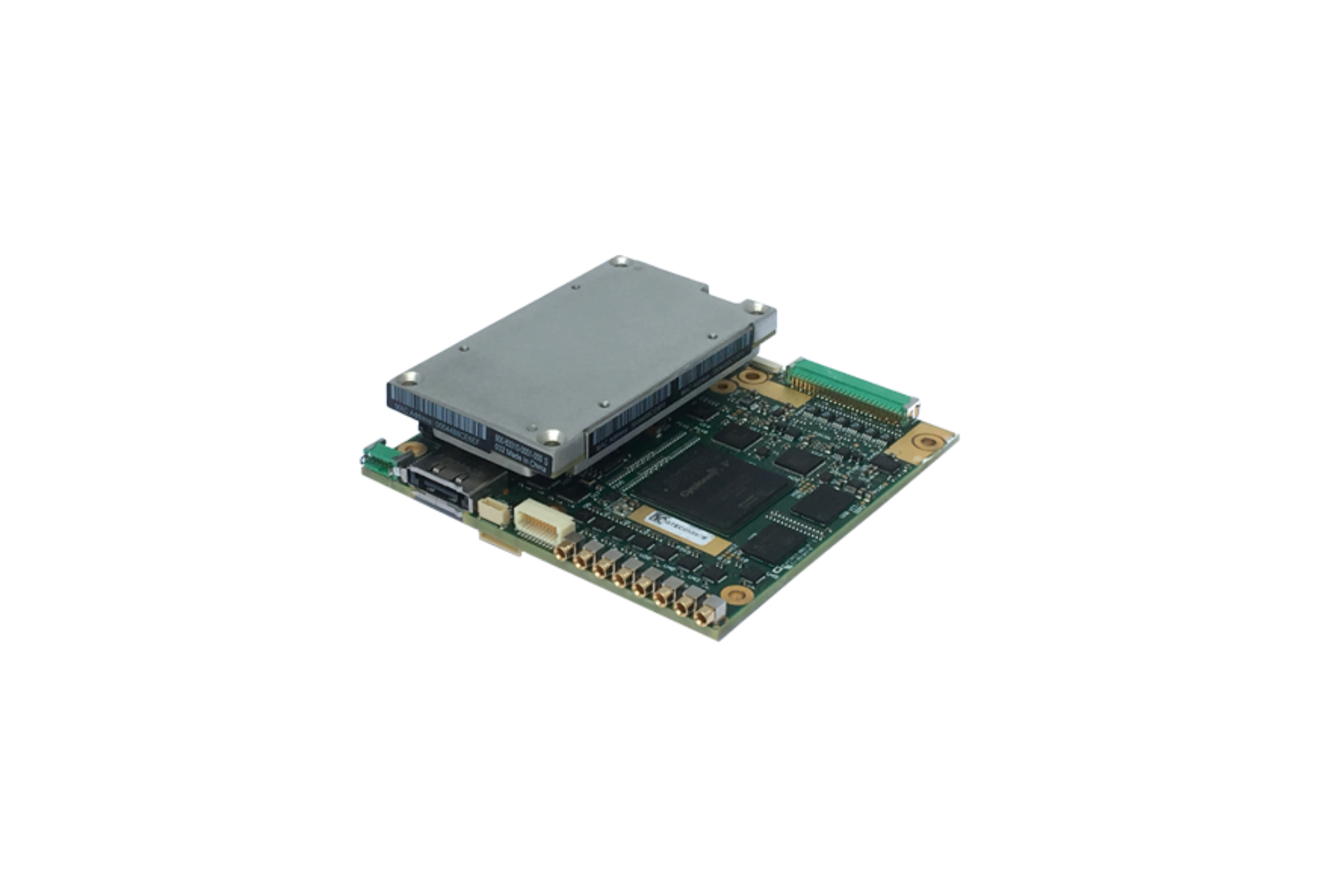

Chess Dynamics Vision4ce CHARM100 (EOL)

CHARM100 (EOL)

Standalone video processor board



  • Size: 100mm x 100mm
  • Processing Channels: 2
  • Video Inputs: 4 x PAL/NTSC, 2 x YPrPb, 4 x 3G-SDI
  • Video Outputs: 4 x PAL/NTSC, 2 x YPrPb, 4 x 3G-SDI
  • Data Interfaces: 4 x RS422, 1 x Ethernet

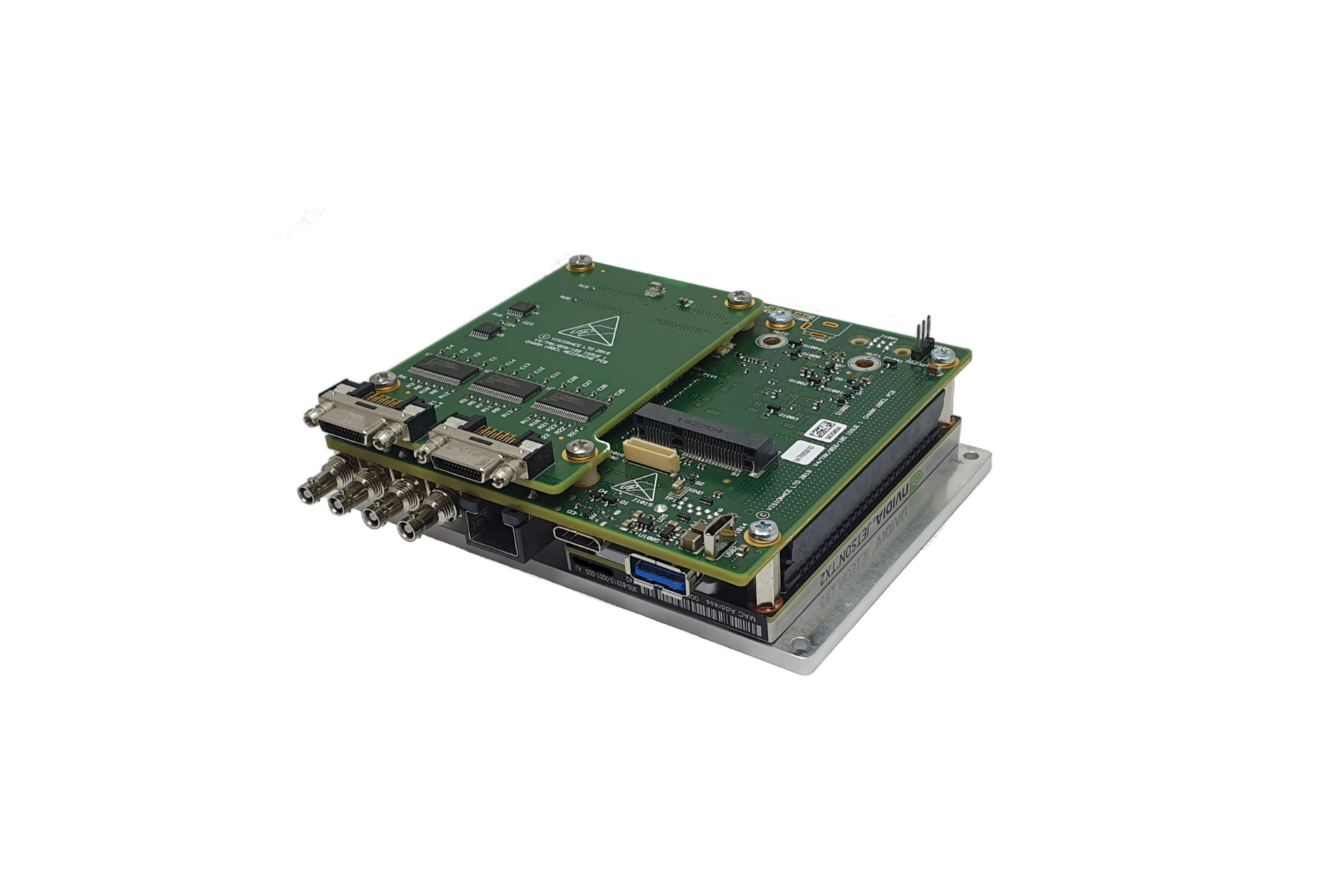

CHARM100CL (EOL)

Standalone video processor board



  • Size: 100mm x 100mm
  • Processing Channel: 2
  • Video Inputs: 2 x SD/HD/3G-SDI, 1 X CameraLink, (Base, Medium, Full)
  • Video Outputs: 2 x SD/HD/3G-SDI
  • Data Interfaces: 3 x RS422, Ethernet, IRIG, CANbus
Chess Dynamics Vision4ce CHARM100CL

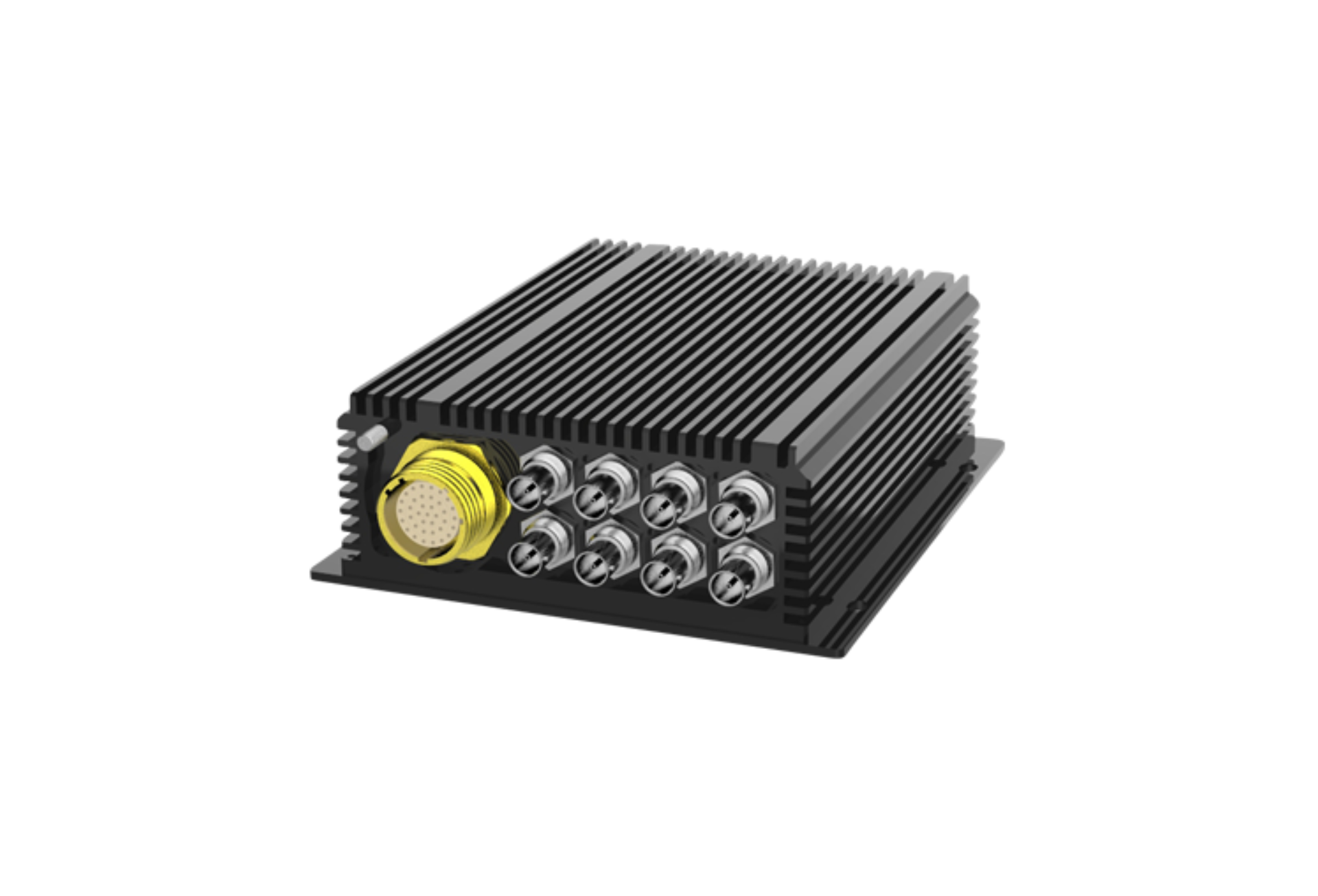

Chess Dynamics Vision4ce CHARM100 Enclosure (EOL)

CHARM100 Enclosure (EOL)

Standalone video processor unit



  • Size: 178mm x 156mm x 57mm
  • Processing Channels: 2
  • Video Inputs: 2x PAL/NTSC, 2x 3G/SDI
  • Video Outputs: 2x PAL/NTSC, 2x 3G/SDI
  • Data Interfaces: 4 x RS422, 1 x Ethernet

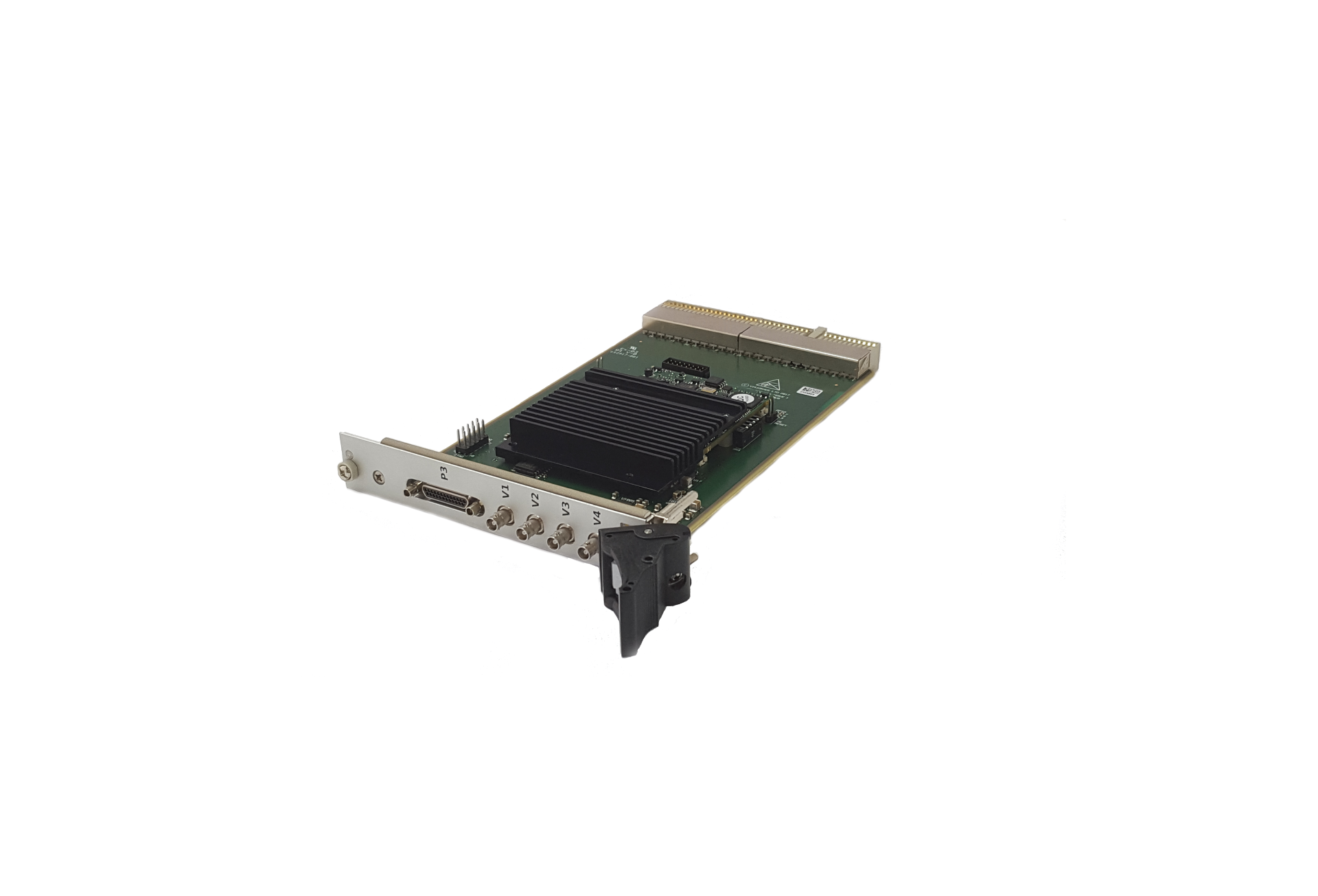

CHARM3U (EOL)

3U Video Tracker Board



  • Size: Single Eurocard
  • Processing Channels: 1
  • Video Inputs: 2 x PAL/NTSC
  • Video Outputs: 2 x PAL/NTSC
  • Data Interfaces: 2 x RS232, 2 x RS422, 1 x Ethernet
Chess Dynamics Vision4ce CHARM3U (EOL)

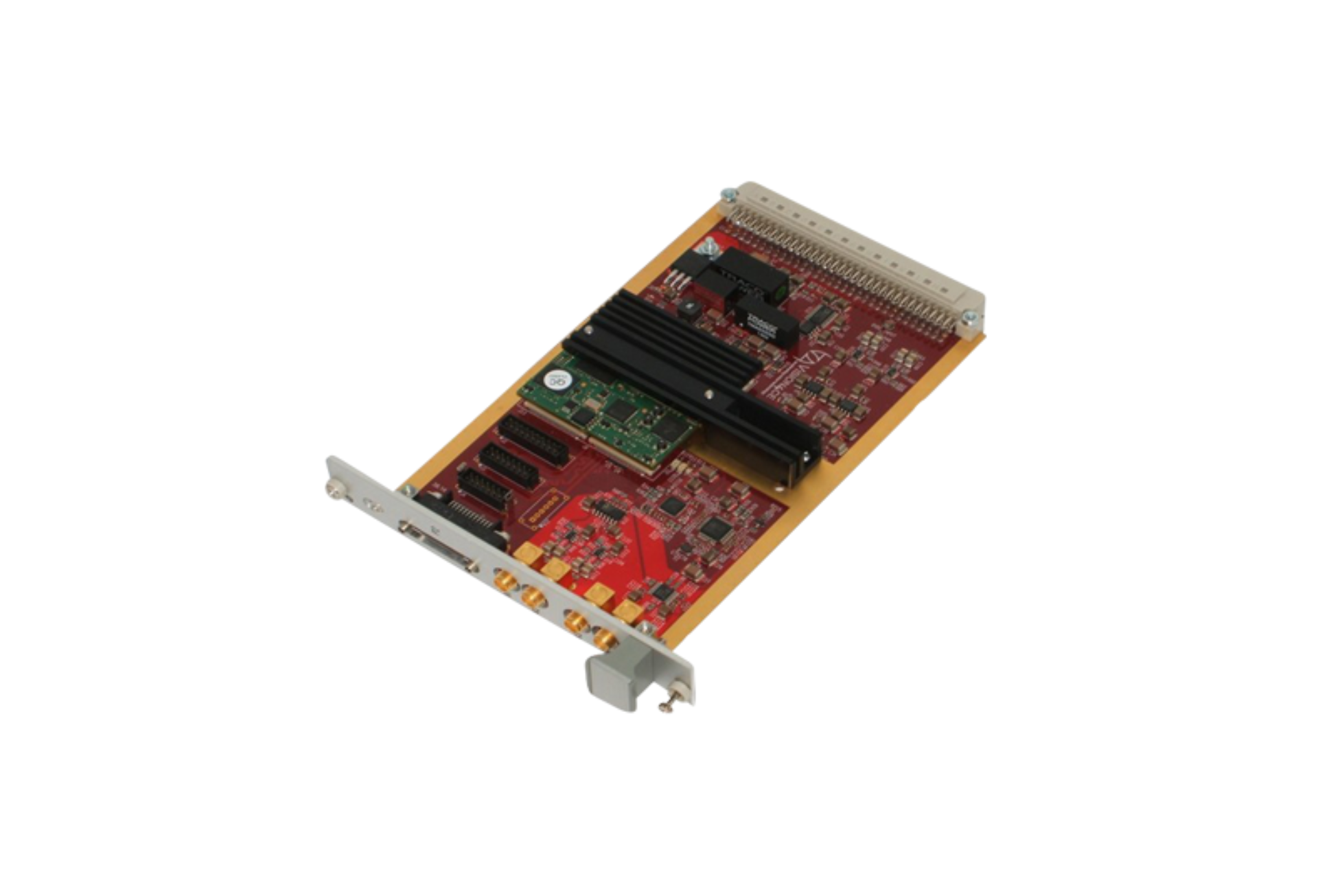

Chess Dynamics Vision4ce CHARM3U cPCI

CHARM3U cPCI

3U Video Tracker Board



  • Size: 3U x 160mm
  • Processing Channels: 1
  • Video Inputs: 2 x PAL/NTSC or 2 X HD-SDI
  • Video Outputs: 2 x PAL/NTSC
  • Data Interfaces: 2 x RS232, 2 x RS422, Ethernet, VME

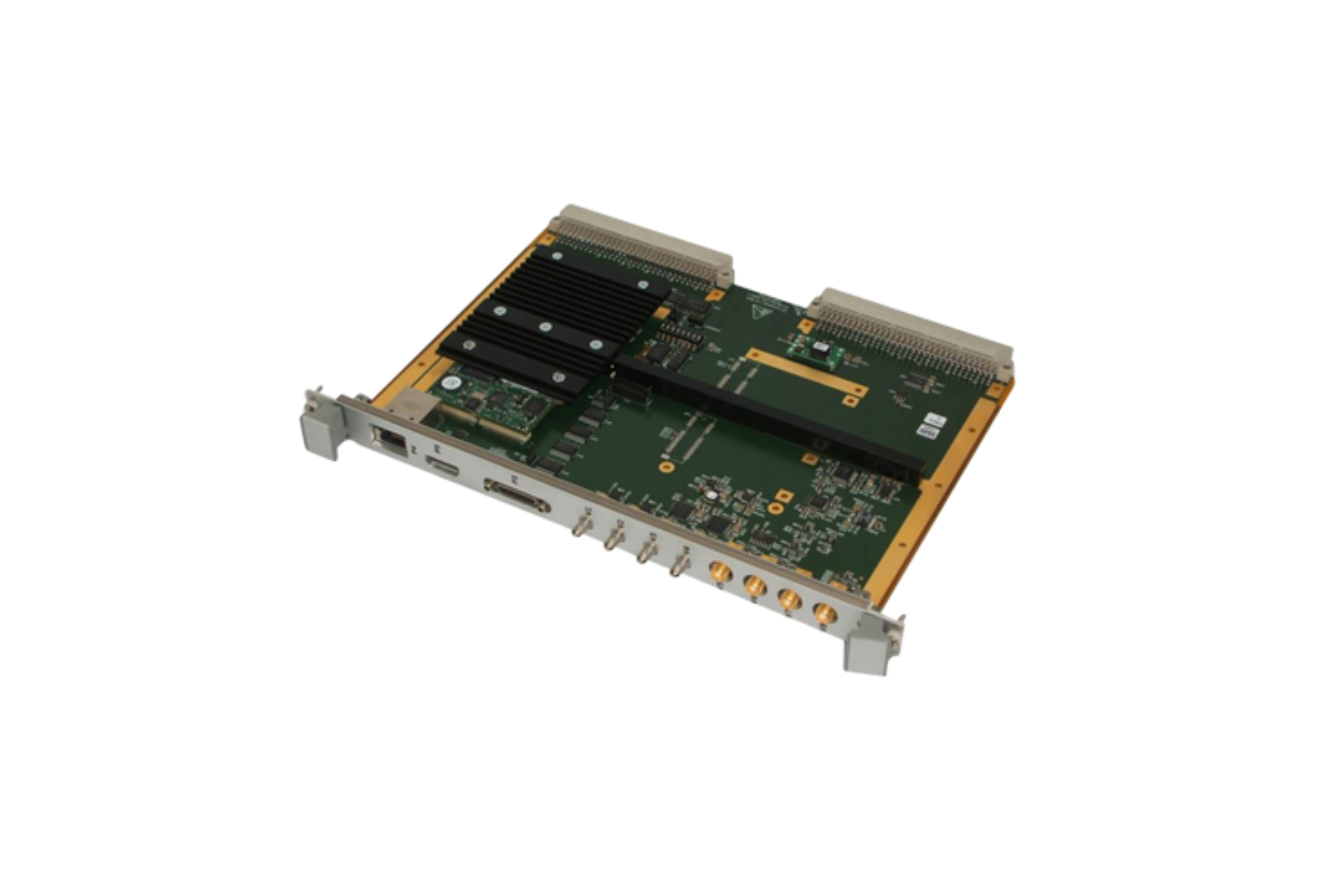

CHARM6U VME

6U VME video tracker board



  • Size: Double Eurocard
  • Processing Channels: 1
  • Video Inputs: 2 x PAL/NTSC, 2 x HD-SDI
  • Video Outputs: 2 x PAL/NTSC, 2 x HD-SDI
  • Data Interfaces: 2 x RS232, 2 x RS422, 1 x Ethernet, VME
Chess Dynamics Vision4ce CHARM6U VME
Chess Dynamics Vision4ce CHARM10CE

CHARM10CE

Standalone video tracker board



  • Size: 84mm x 55mm
  • Processing Channels: 2
  • Video Inputs: 2 x PAL/NTSC, 1 x YPbPr, 1 x SD/HD/3G SDI
  • Video Outputs: 2 x PAL/NTSC, 1 x YPbPr, 1 x SD/HD/3G SDI
  • Data Interfaces: Ethernet, 2 x RS232/RS422 or RS485

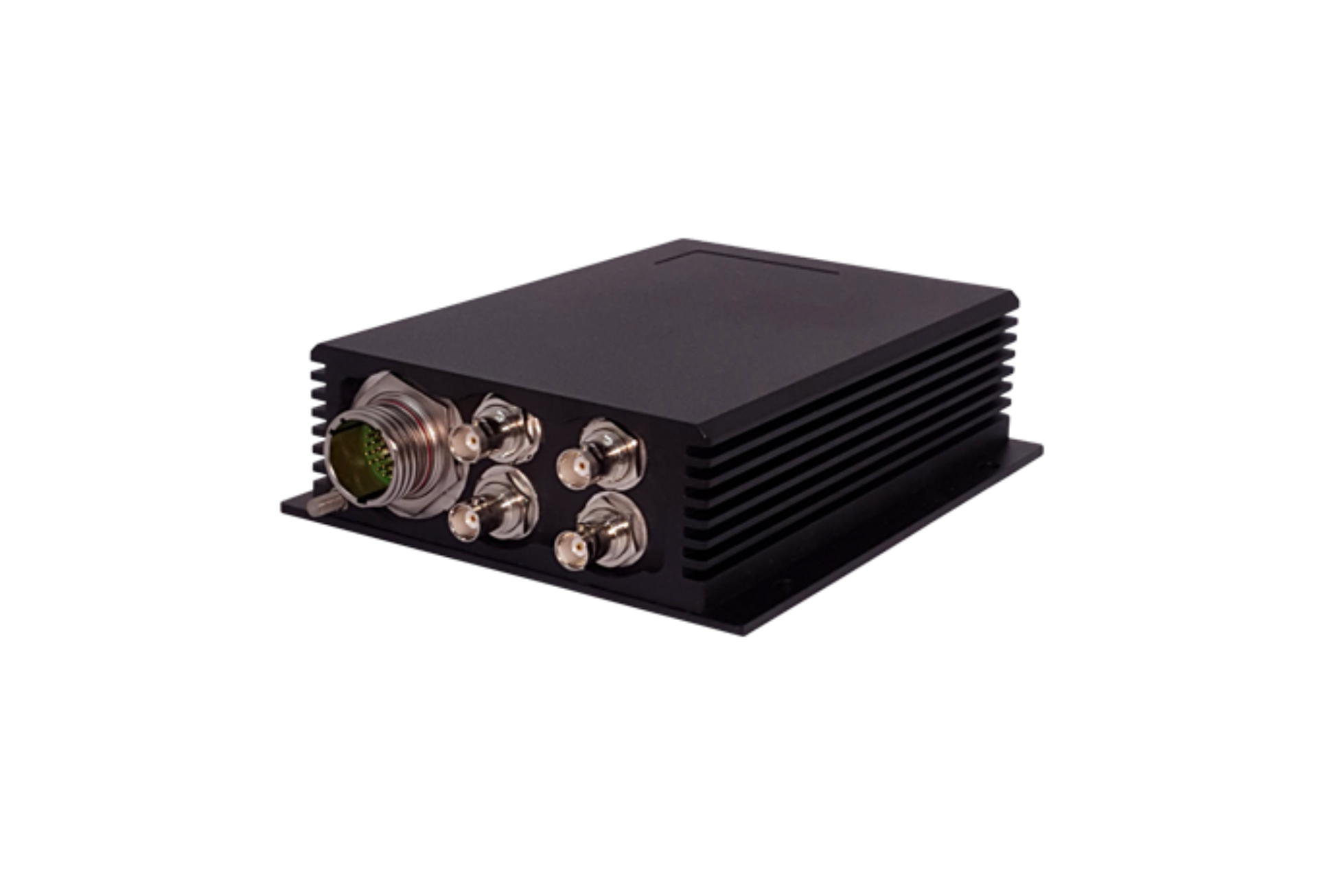

CHARM10CE Enclosure

Standalone video processor unit



  • Size: 178mm x 144mm x 49mm
  • Processing Channels: 1
  • Video Inputs: 2 x PAL/NTSC
  • Video Outputs: 2 x PAL/NTSC
  • Data Interfaces:  2 x RS232, 2 x RS422, 1 x Ethernet
Chess Dynamics Vision4ce CHARM10CE Enclosure
