Vision4ce Video Management Software (VMS)
Vision4ce Video Management Software (VMS)
Chess Dynamics’ Video Management Software (VMS) is a comprehensive video management and image processing software suite for the control of electro-optical (EO) systems. VMS can also incorporate the video and image processing functions contained in the Vision4ce Frameworkx software.
The VMS comprises several standard software modules that can be custom configured to meet end user requirements. This modular approach enables the rapid and cost-effective deployment of sophisticated video management solutions with customers only needing to purchase those modules required for their application.
VMS uses a Client/Server architecture which allows the VMS to be remotely controlled from a network. The user interface and control methodology is designed to minimize the operator involvement whilst maximizing the quality of the information available.

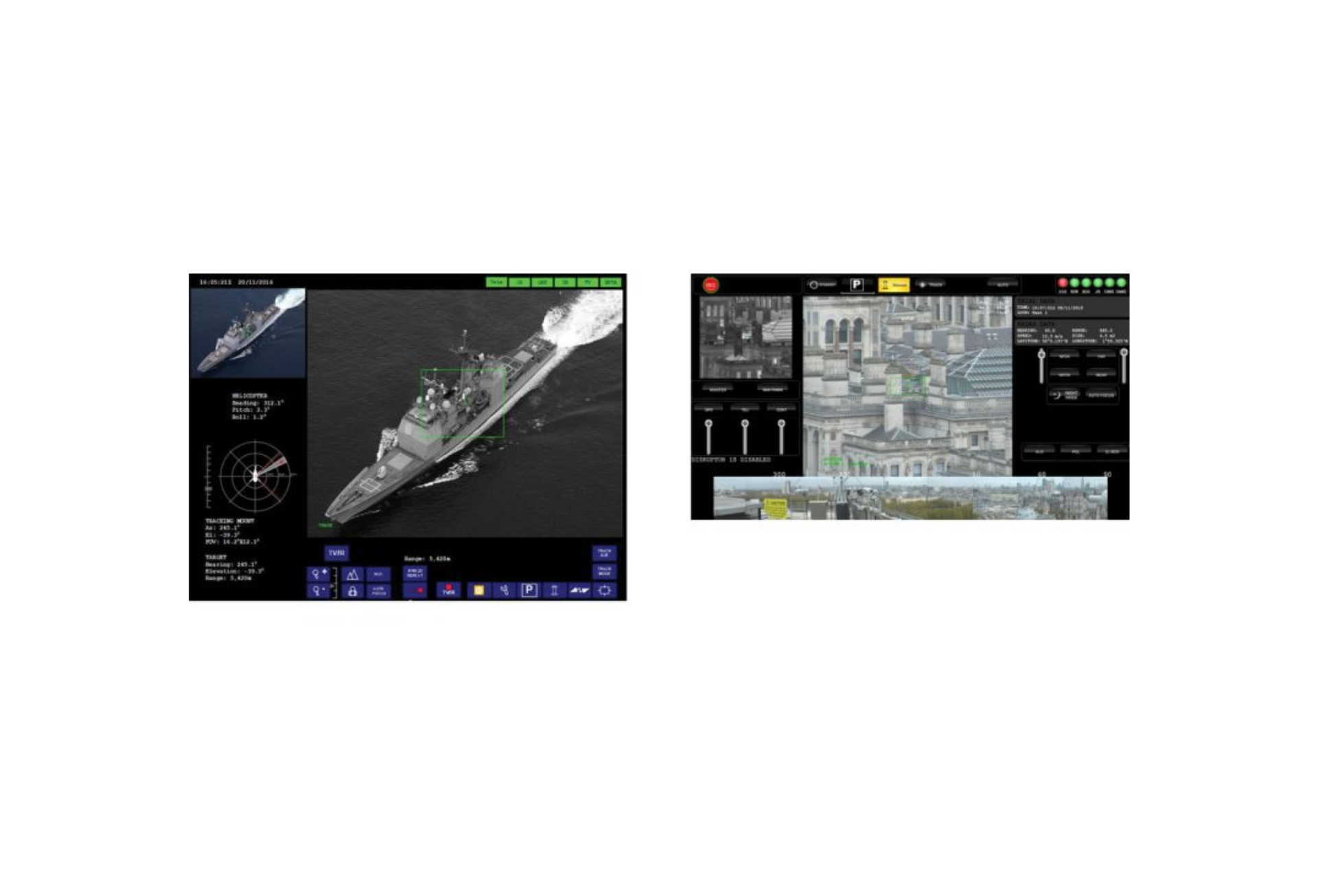

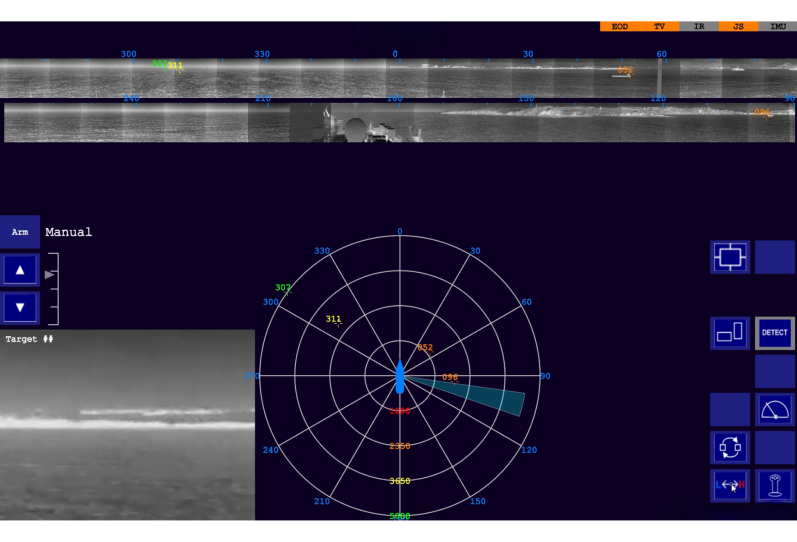

The software’s Graphical User Interface can display multiple video streams in a flexible layout which can be customized to meet operational requirements.
The display features on-screen presentation of ancillary data and semi-transparent video overlays for important user interface items.
An operator can interact with VMS and therefore the EO system, using a combination of touchscreen, joystick and keyboard control.
VMS provides the operator with control and feedback of all aspects of the EO system, including:
- Graphical user interfaces
- System control
- Video target detection, tracking and classification
- Panoramic display formation
- Video compression and recording (H.264, H.265 & M-JPEG)
- Video Streaming (MPEG-TS, STANAG 4609, RTSP, DEF STAN 00-82)
- Electronic image stabilisation (eStab)
- Image enhancement
- Geodetic positioning
- Ballistic computation
- Integration with surveillance radars
- Multi language support
