Vision4ce GRIP Alpha

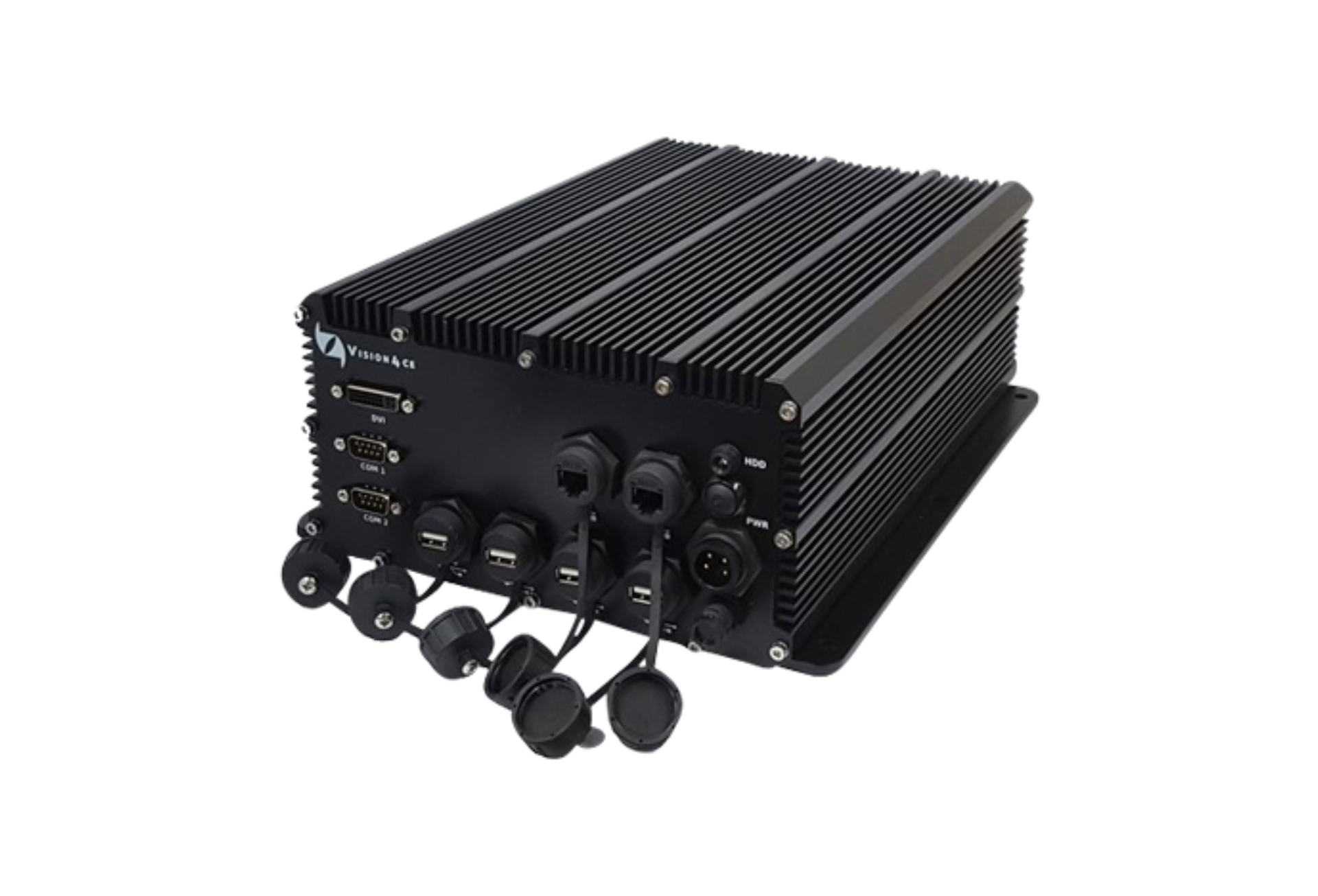

The GRIP Alpha is a high performance semi-rugged computer system which is targeted at applications that require high performance Intel CPU combined with a flexible interface architecture. The flexibility is provided by two M.2 expansion slots and one Mini PCIe expansion slots giving a total of three expansion slots which makes it well suited to video and other sensor processing applications which require specialised interfaces for direct connection to sensors.
Video interfaces supported by expansion cards include Camera Link, CoaXPress, Analogue (PAL/NTSC/YPbPr), SD-SDI, HD-SDI and 3G-SDI
The GRIP Alpha electronics are contained within a sealed enclosure and external fans are used to cool the unit.

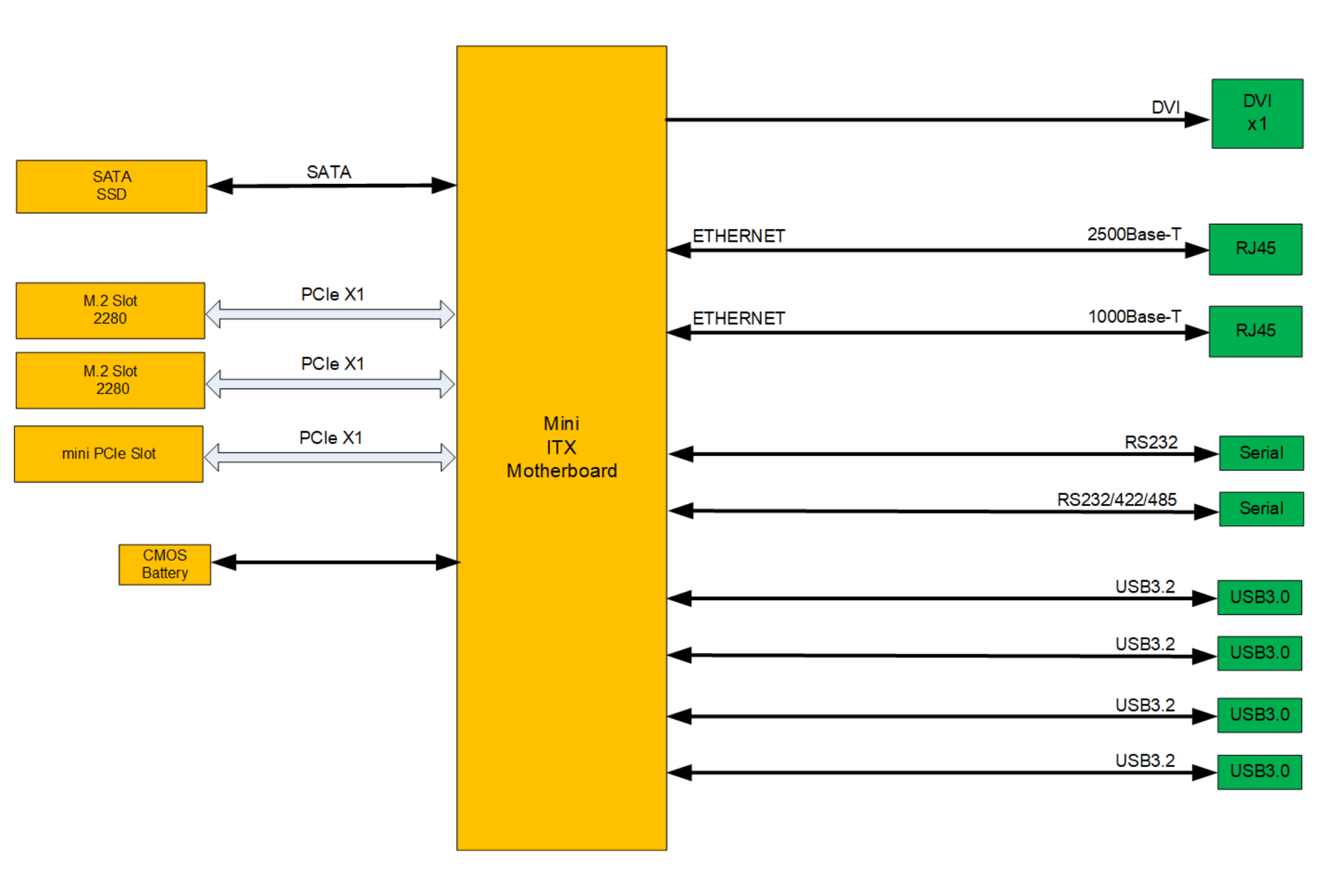

Specifications
- Mini ITX Motherboard
- Intel Core i7-12800HE, fourteen core CPU (Default)
- RAM
- Up to 64GB
- SSD
- 500GB (Default)
Data Interfaces
- 4 x USB 3.0
- 1 x Serial RS232
- 1 x Serial RS232/422 /485
- 1 x Ethernet – 10/100/1000 Base-T
- 1 x Ethernet – 10/100/1000/2500 Base-T
Display Interfaces
- 1 x DVI
Power
- 10-32VDC
- <60W
Expansion
- 2x M.2 2280/2240 PCIe
- 1x mini PCIe
Size
- Dimensions 240 x 320 x 110mm (9.45” x 12.59” x 4.33”)
Weight
- 0Kg (13.2lbs)
Environmental
- Temperature
- Operating -20C to +50C
- Non-operating -40C to +70C
- Humidity – 5% to 95% non-condensing
EMC
- EN550022 Class A, EN550024 Class A, FCC Part 15 Class A
