Vision4ce GRIP Epsilon
Vision4ce GRIP Epsilon
The GRIP Epsilon is a high performance rugged computer system which is targeted at applications that require high performance Intel CPU combined with an Nvidia GPU and a flexible interface architecture. The flexibility is provided by three M.2 expansion slots and two Mini PCIe expansion slots giving a total of five expansion slots which makes it well suited to video and other sensor processing applications which require specialised interfaces for direct connection to sensors.
Video interfaces supported by expansion cards include Camera Link, CoaXPress, Analogue (PAL/NTSC/YPbPr), SD-SDI, HD-SDI and 3G-SDI

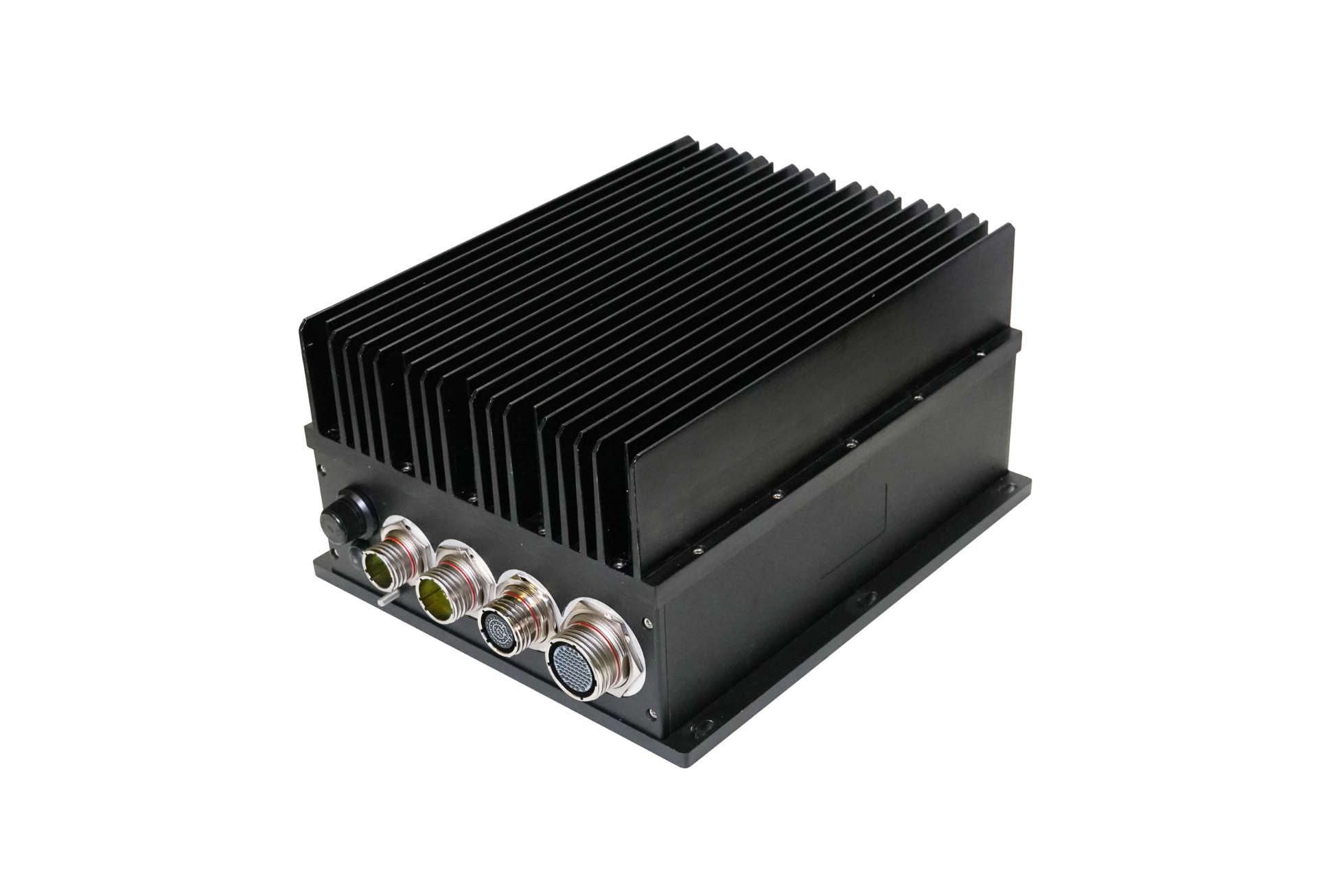

The GRIP Epsilon is available in either conduction cooled or convection cooled versions. The conduction cooled version is cooled through the baseplate and has the fins removed. The convection cooled version is cooled through fins on the top of the unit.

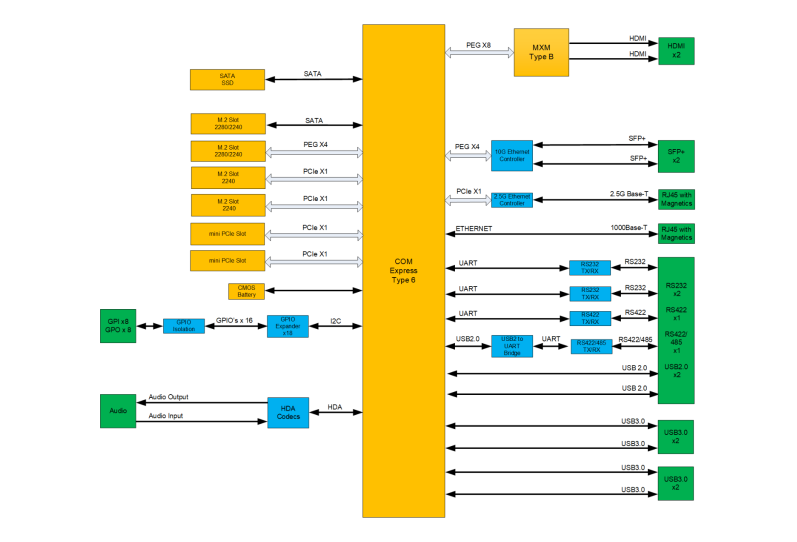

Specifications
- COM Express Type 6
- Intel Core i7-11850HE, eight core CPU (Default)
- MXM Type A or B
- NVIDIA A1000 graphics processor (Default)
- RAM
- 64GB (Default)
- SSD
- 500GB (Default)
Data Interfaces
- 2 x USB 2.0
- 2 x Serial RS232
- 1 x Serial RS422
- 1 x Serial RS422/485
- 1 x Ethernet – 10/100/1000 Base-T
- 1 x Ethernet – 10/100/1000/2500 Base-T
- 2 x Ethernet – 10G Base-T /Base-SR (Optional)
- 4 x USB 3.0 (Optional)
Display Interfaces
- 2 x HDMI
Power
- 28VDC (20V to 36V)
- MIL-STD-1275E
- <140W
Expansion
- 1x M.2 2280/2240 PCIe
- 2x M.2 /2240 PCIe
- 2x mini PCIe
Size
- Convection cooled
- Dimensions 239 x 293 x 145mm (9.4” x 11.54” x 5.7”)
- Conduction cooled
- Dimensions 239 x 293 x 90mm (9.4” x 11.54” x 3.55”)
Weight
- Convection cooled
- 9Kg (17.4lbs)
- Conduction cooled
- 0Kg (13.2lbs)
Environmental
- Temperature
- Operating -40C to +71C
(Convection cooled unit derates based on processing load and airflow)
- Non-operating -40C to +85C
- Humidity – 5% to 95% non-condensing
- Shock – 30g, 11ms
EMC
- MIL-STD-461E
