CHARM-100NX Enclosure
Video Processor module

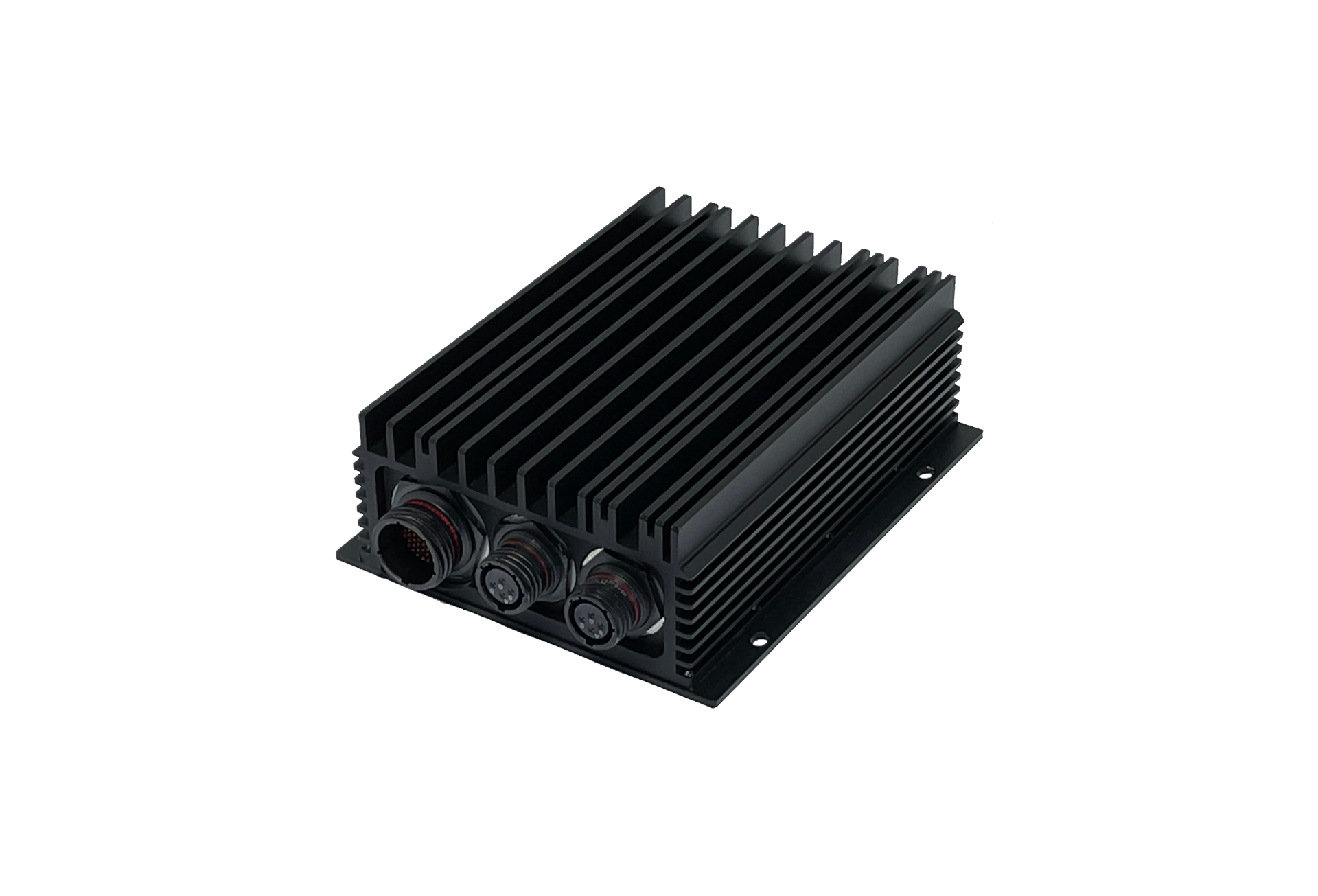

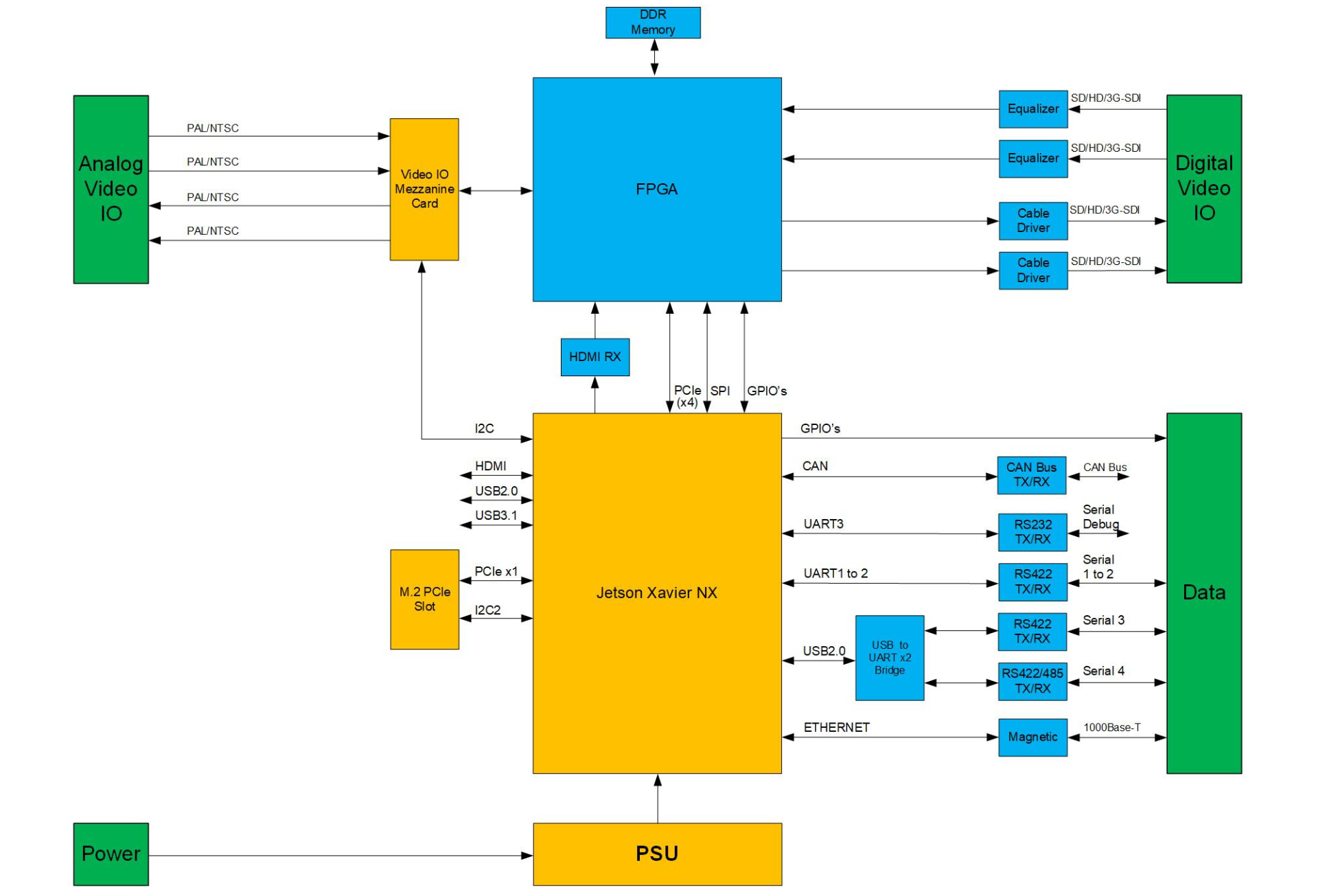

The CHARM-100NX Enclosure consists of a CHARM-100NX packaged into a rugged, sealed enclosure along with a 28VDC power supply suitable for vehicle or aircraft power supplies. The CHARM-100NX Enclosure provides connection to two analogue video inputs and outputs along with two digital video inputs and outputs.
Video Inputs
- 2 x digital video inputs
- SD-SDI, HD-SDI, 3G-SDI
- 480i60, 576i50, 720p50/59.94/60, 1080p25/29.97/30, 1080i50/59.94/60, 1080p50/59.94/60
- 2 x composite video inputs
- PAL or NTSC
- Video Outputs
- 2 x digital video outputs
- SD-SDI, HD-SDI, 3G-SDI
- 2 x composite video outputs
- PAL or NTSC
- Selectable symbology overlay on one output
- Data
- 4 x RS422
- 1 x Ethernet
- 1 x 10/100/1000 Base T
- 1 x CAN
Power
- 18-32VDC
- <30W
Connectors
- D38999 55 way plug
- Power
- Ethernet
- 4 x RS422
- 1 x CAN
- D38999 4 way plug
- 2x composite video inputs
- 2x composite video outputs
- D38999 4 way plug
- 2x digital video inputs
- 2x digital video outputs
Mechanical
- Weight 4.4lbs, 2.0kg
- Dimensions 7.0” (d) x 6.15” (w) x 2.24” (h) (178 mm x 156mm x 57mm), excluding connectors
Environmental
- Temperature
- Operating -25C to +50C
- Non-operating -40C to +85C
