CHARM-3UVPX
3UVPX format Video Processing Board

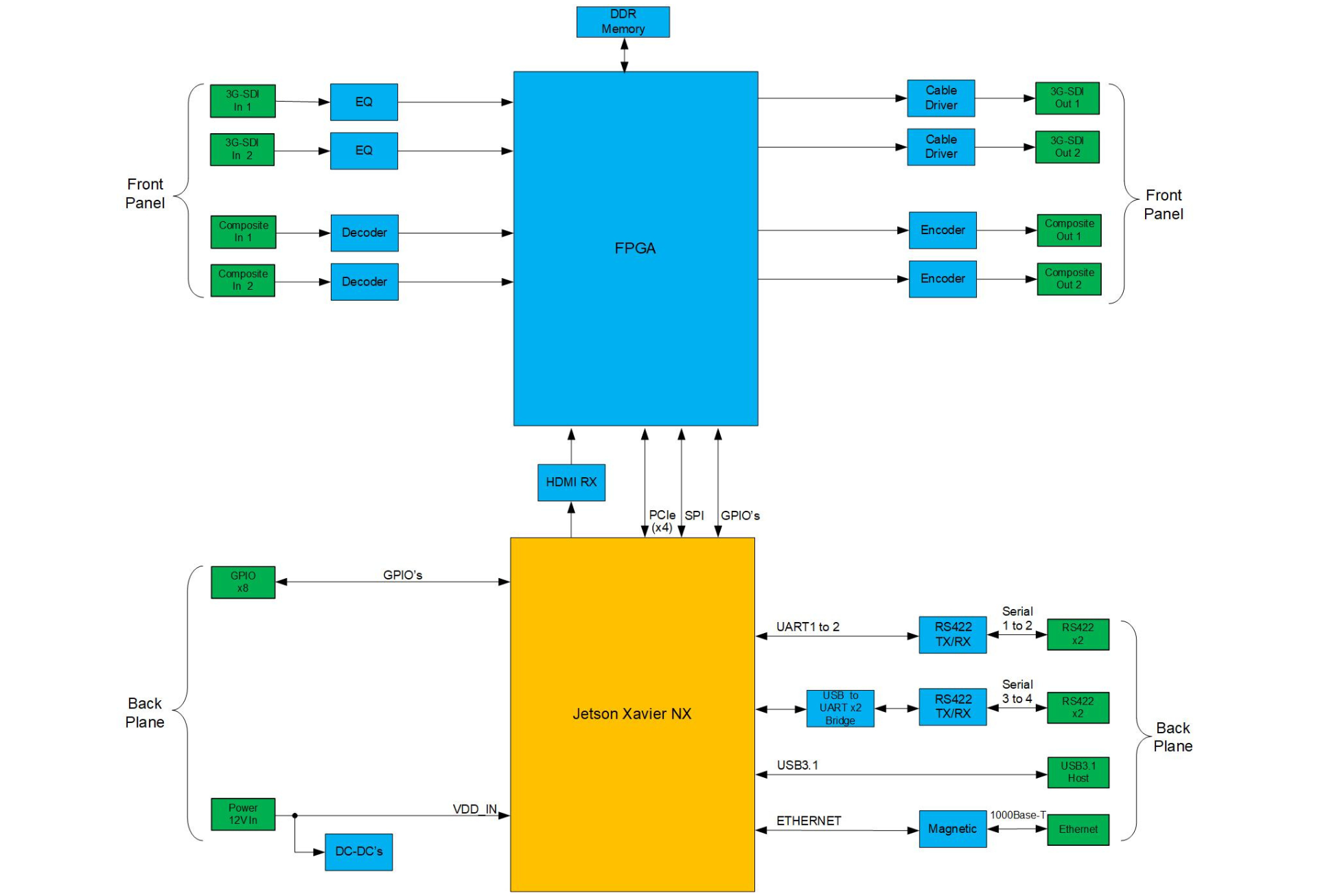

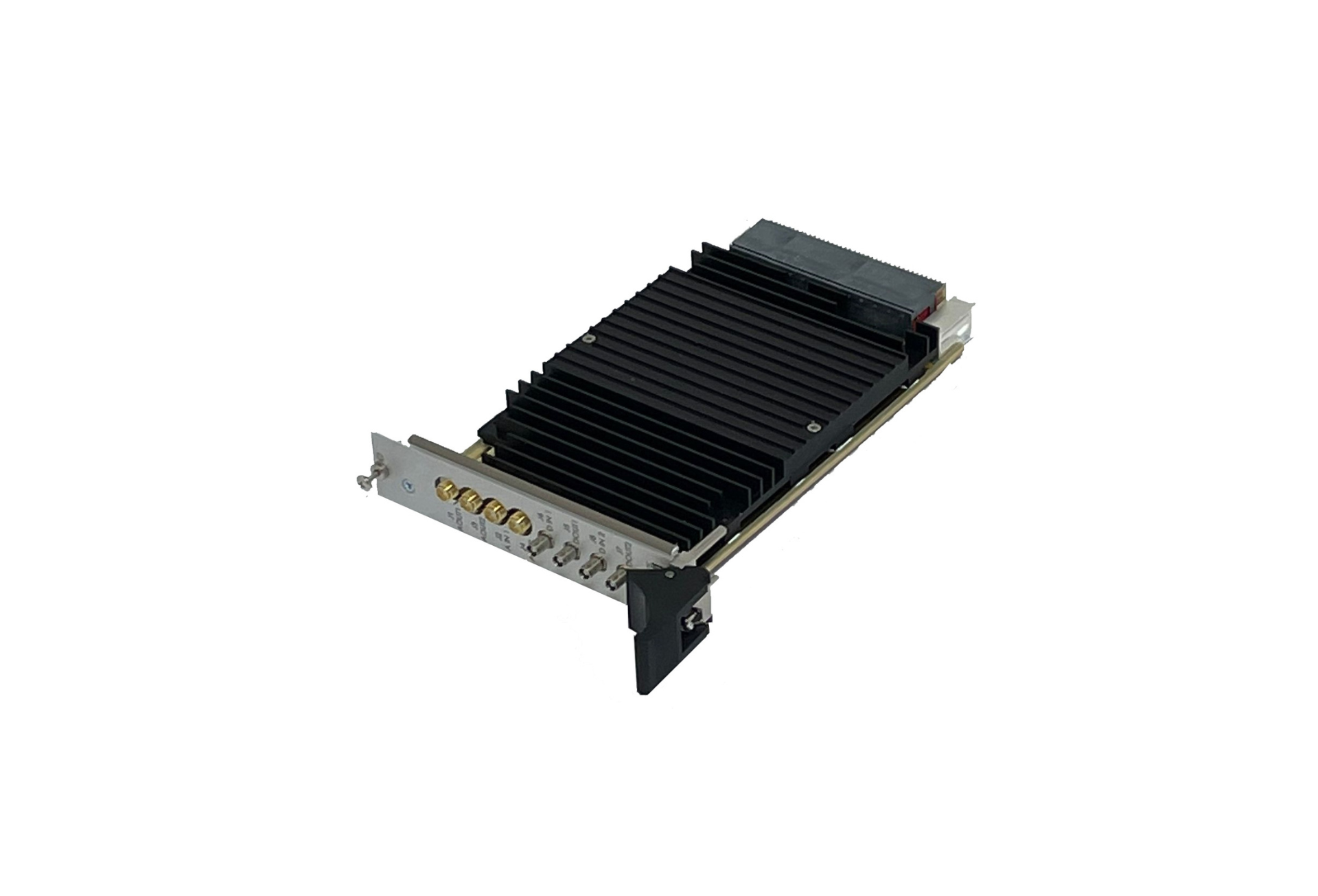

The Vision4ce CHARM-3UVPX is a 3UVPX format video processing board for embedded video and image processing applications, which is designed to host the Vision4ce FrameWorkx image processing software which builds upon the field proven DART video tracking software. The CHARM-3UVPX is based on a NVIDIA Xavier NX embedded processor which incorporates a multicore ARM processor and powerful AI/ML accelerator.
The standard video interfaces are 3G/HD/SD SDI and PAL/NTSC composite. The primary host interface is through an Ethernet port. Multiple serial links are also provided. The M.2 slot can be used to add up to an SSD, 2 additional Ethernet ports, or other connections.
Video Inputs
- 2 x digital video inputs
- SD-SDI, HD-SDI, 3G-SDI
- 480i60, 576i50, 720p50/59.94/60, 1080p25/29.97/30, 1080i50/59.94/60, 1080p50/59.94/60
- 2 x PAL/NTSC composite
Video Outputs
- 2 x digital video outputs
- SD-SDI, HD-SDI, 3G-SDI
- 480i60, 576i50, 720p50/59.94/60, 1080p25/29.97/30, 1080i50/59.94/60, 1080p50/59.94/60
- 2 x PAL/NTSC composite
- Selectable symbology overlay on outputs
Data Interfaces
- 1 x Ethernet – 10/100/1000 Base-T
- 4 x Serial RS422
- 1 x IRIG DCLS input
Power
- +12VDC +/-5%
- <30W
Mechanical
- 3U VPX, 1” width
Environmental
- Temperature – Operating -25C to +50C – Non-operating -40C to +85C
- Humidity – 5% to 95% non-condensing – Optional conformal coating available
- Shock – 30g, 11ms
