Vision4ce CHARM80
Vision4ce CHARM80

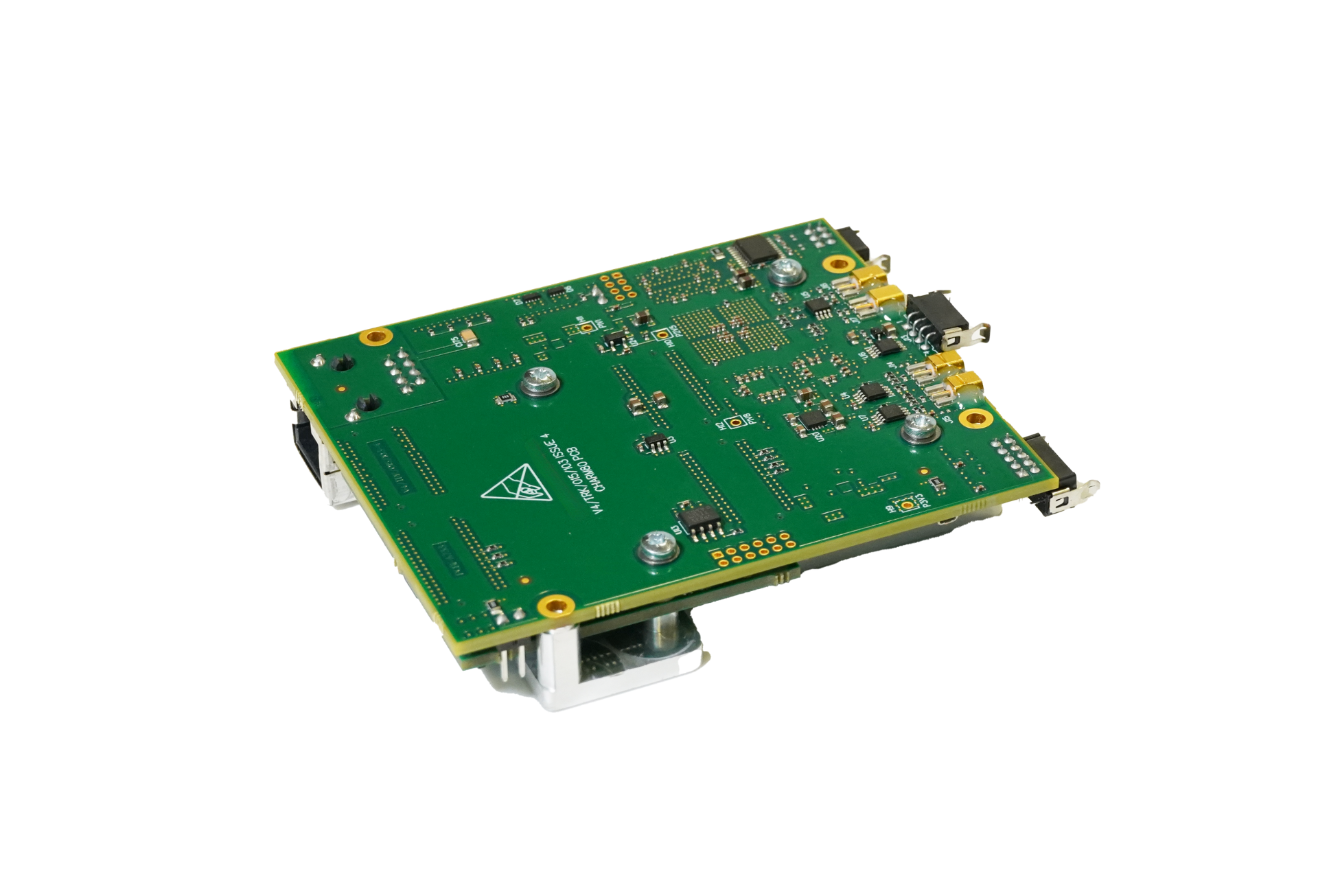

Video Processing Board 77mm x 90mm x 19mm

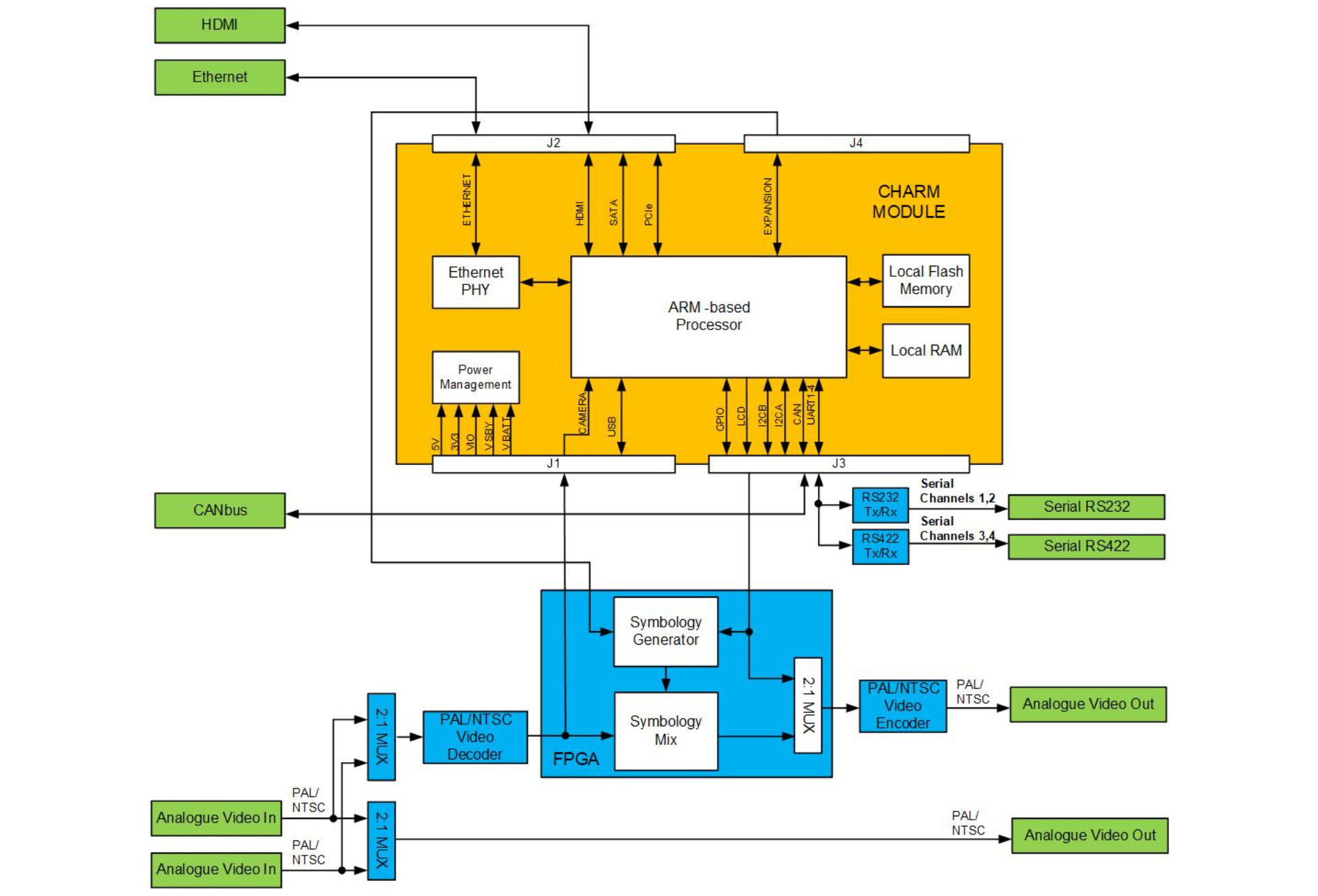

The Vision4ce CHARM-80 is a standalone video processing board for embedded video and image processing applications, which is designed to host the Vision4ce FrameWorkx image processing software which includes the field proven DART video tracking software. The CHARM-80 is based on an iMX6 embedded multicore ARM processor.
There are two variants of the CHARM. One with PAL/NTSC analogue video interfaces and the second with HD/SD SDI digital video interfaces. The primary host interface is through an Ethernet port. Multiple RS232/422 serial links are also provided.
Video Inputs
- 2 x PAL/NTSC Composite (CHARM80)
- 2 x HD/SD SDI (CHARM80SDI)
- 480i60, 576i50, 720p50/59.94/60, 1080p25/29.97/30, 1080i50/50.94/60
Video Outputs
- 2 x PAL/NTSC Composite (CHARM80)
- 2 x HD/SD SDI (CHARM80SDI)
- Selectable symbology overlay on outputs
Data Interfaces
- 1 x Ethernet – 10/100/1000 Base-T
- 2 x Serial RS232
- 2 x Serial RS422
Power
- +5VDC +/-5%
- <8W
Mechanical
- Dimensions 77mm x 90mm x 18mm
- Convection or conduction cooling options
Environmental
- Temperature – Operating -40C to +71C – Non-operating -40C to +85C
- Humidity – 5% to 95% non-condensing – Optional conformal coating available
- Shock – 30g, 11ms
