MiniCHARM-SDI

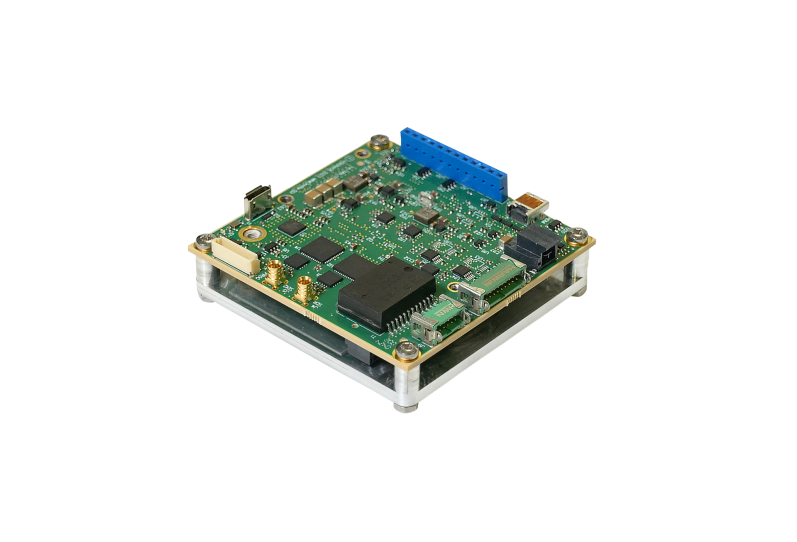

Compact Video Processing Module 65mm x 63mm x 18mm



The MiniCHARM is a standalone module for video and image processing applications which is optimised for low SWAP (size, weight and power) applications. It hosts the Vision4ce FrameWorkx image processing software. FrameWorkx builds upon the field proven DART video tracking software. The MiniCHARM is based on an iMX8M Plus application processor with a multicore ARM processor and AI/ML accelerator.



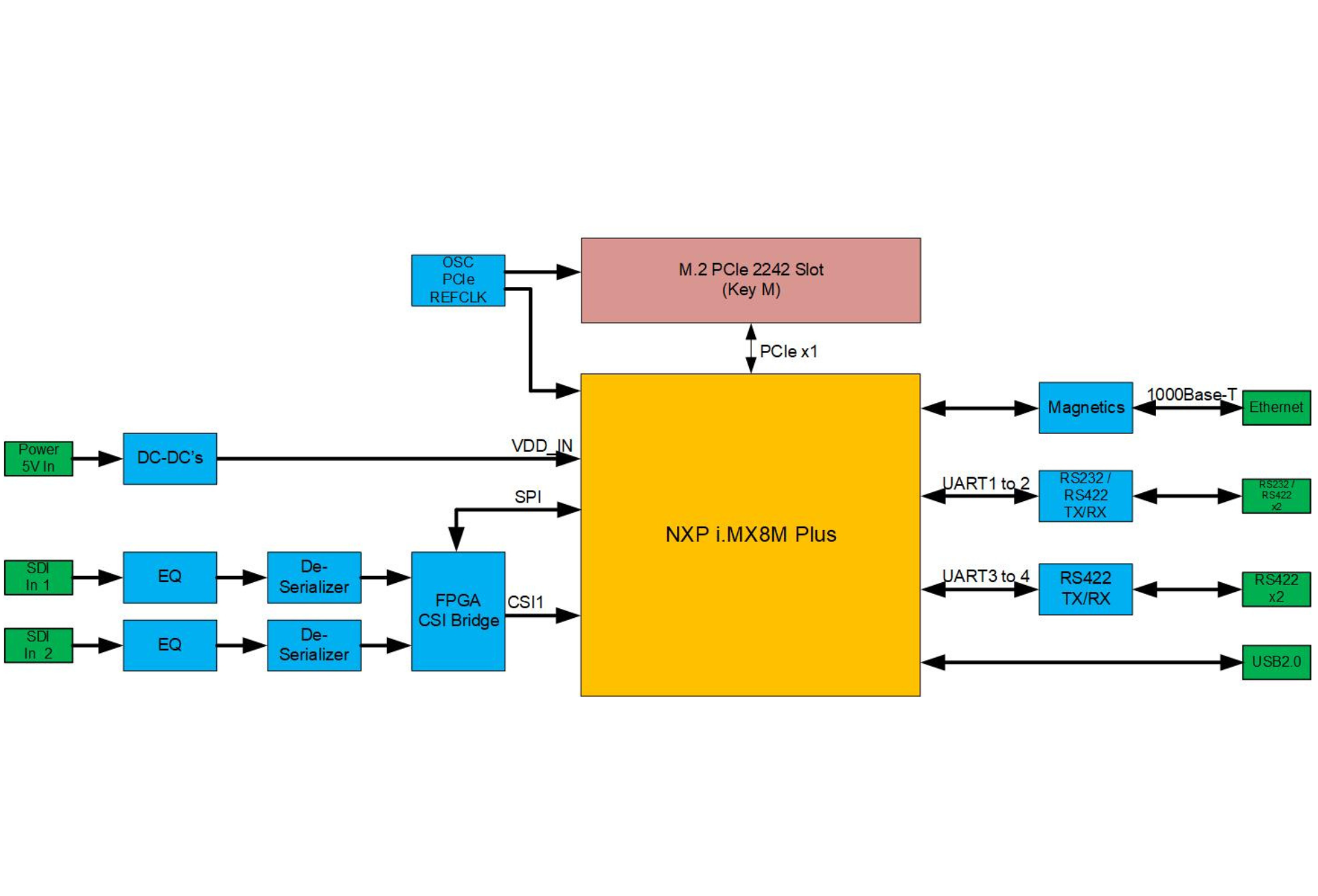

The MiniCHARM-SDI has two HD-SDI video inputs. The primary host interface is through an ethernet port and multiple serial ports are also provided. An M.2 slot can be used for expansion.

Video Inputs

  • 2 x digital video inputs
    • SD-SDI, HD-SDI
    • 480i60, 576i50, 720p50/59.94/60, 1080p25/29.97/30, 1080i50/59.94/60

Data Interfaces

  • 2 x RS232/RS422 serial interfaces (build option)
  • 2 x RS422 Serial Interfaces
  • 1 x 1000BaseT with magnetic
  • 1 x USB 2.0 OTG

Connectors

  • Power (2 pin Nano-Fit header)
  • Video (75 Ohm MMCX7 jack)
  • Ethernet (2 row 12-way Gecko plug)
  • RS232 and 422 (2 row 20-way Gecko plug)
  • USB (micro-AB USB2.0 receptacle connector)



Power

  • +5VDC +/-5%
  • <10W



Mechanical

  • 65mm x 63mm x18mm



Environmental

  • Operating temperature -25C to +71C
