Vision4ce offers a range of specialised and bespoke DVRs (digital video recorders) based on the Vision4ce GRIP hardware and VMS software. The DVRs can incorporate the following capabilities:
Recording of un-compressed video
Recording of compressed video using H.264 and M-JPEG compression
Recording of metadata
Live pause, rewind, playback capability
Removable media
Bulk erase for rapid deletion of sensitive video
Encryption of recorded video
Selectable video input formats including PAL, NTSC, 3G/HD-SDI, YPbPr, CameraLink, HDMI, VGA, CoaXPress and GigE Vision
Network interface
Support for MPEG2-TS, RTSP, STANAG 4609 and DEF-STAN 00-82 video streaming
Direct display interface
 |
 |
|
|
GRIP DVR |
GRIP Mini DVR |
|
|

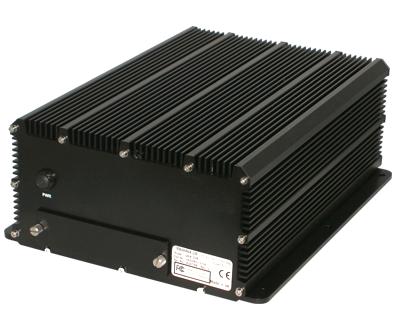

The GRIP DVR is a commercial off the shelf (COTS) rugged digital video recording and digital video distribution system. The video inputs are factory configured as needed and the unit can be configured with a removable SSD. |

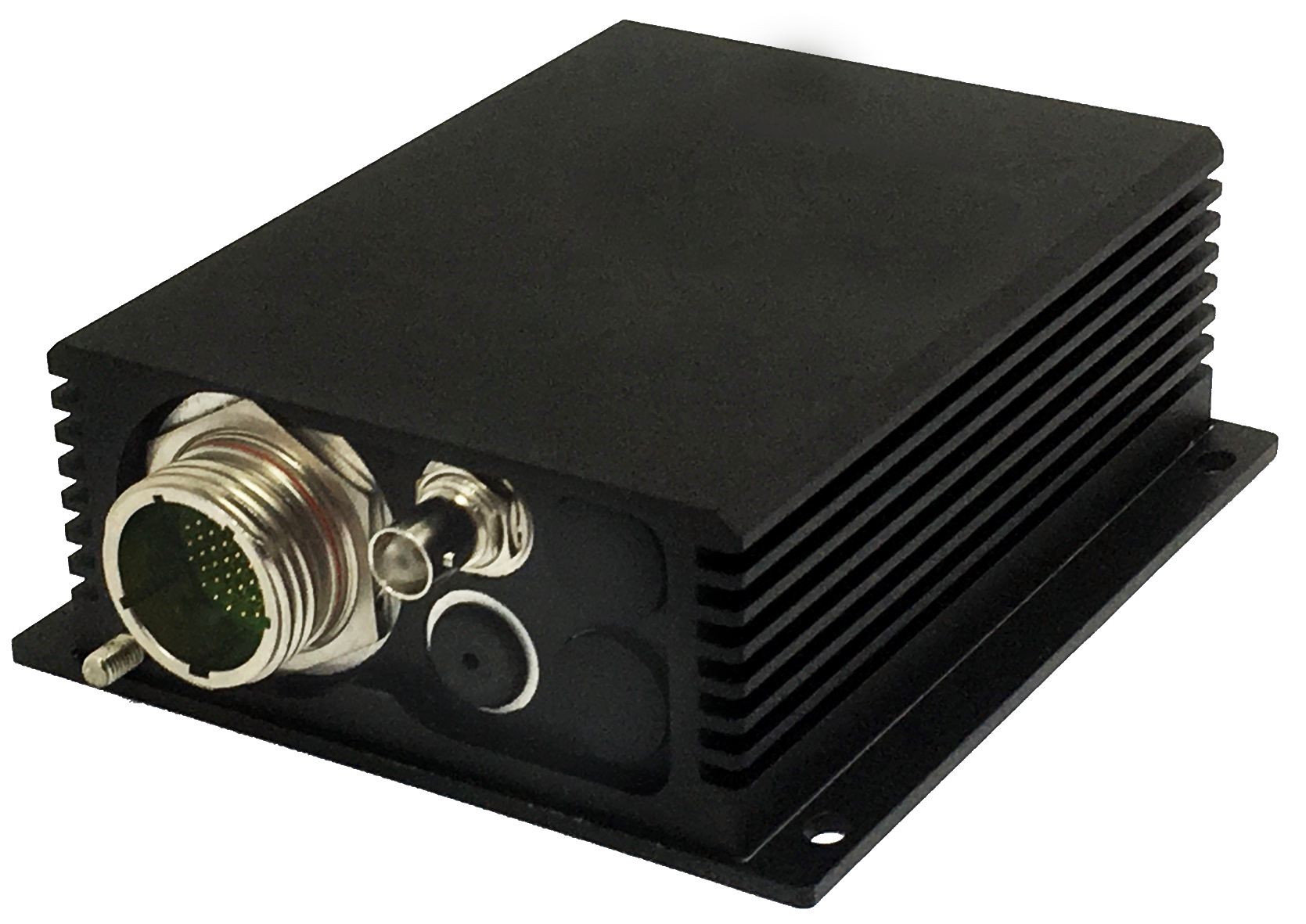

The GRIP Mini DVR is a commercial off the shelf (COTS) rugged digital video recording and digital video distribution system. The standard DVR configuration provides real time H.264 compression and recording of up to 4 analogue video channels at full D1 resolution or 1 channels of HD (YPbPr or HD-SDI) at full frame rates.
Recording options include, video quality, frame size and frame rate. Internal solid-state storage provides capacity for more than 110 hours of H.264 compressed video storage plus an option of “last 20 minute” event capture Near Visually Lossless (NVL) for evidential use. The GRIP application software includes an IP video server.
|
|
