Legacy CHARM products are not recommended for new designs.
 |
 |
 |
|

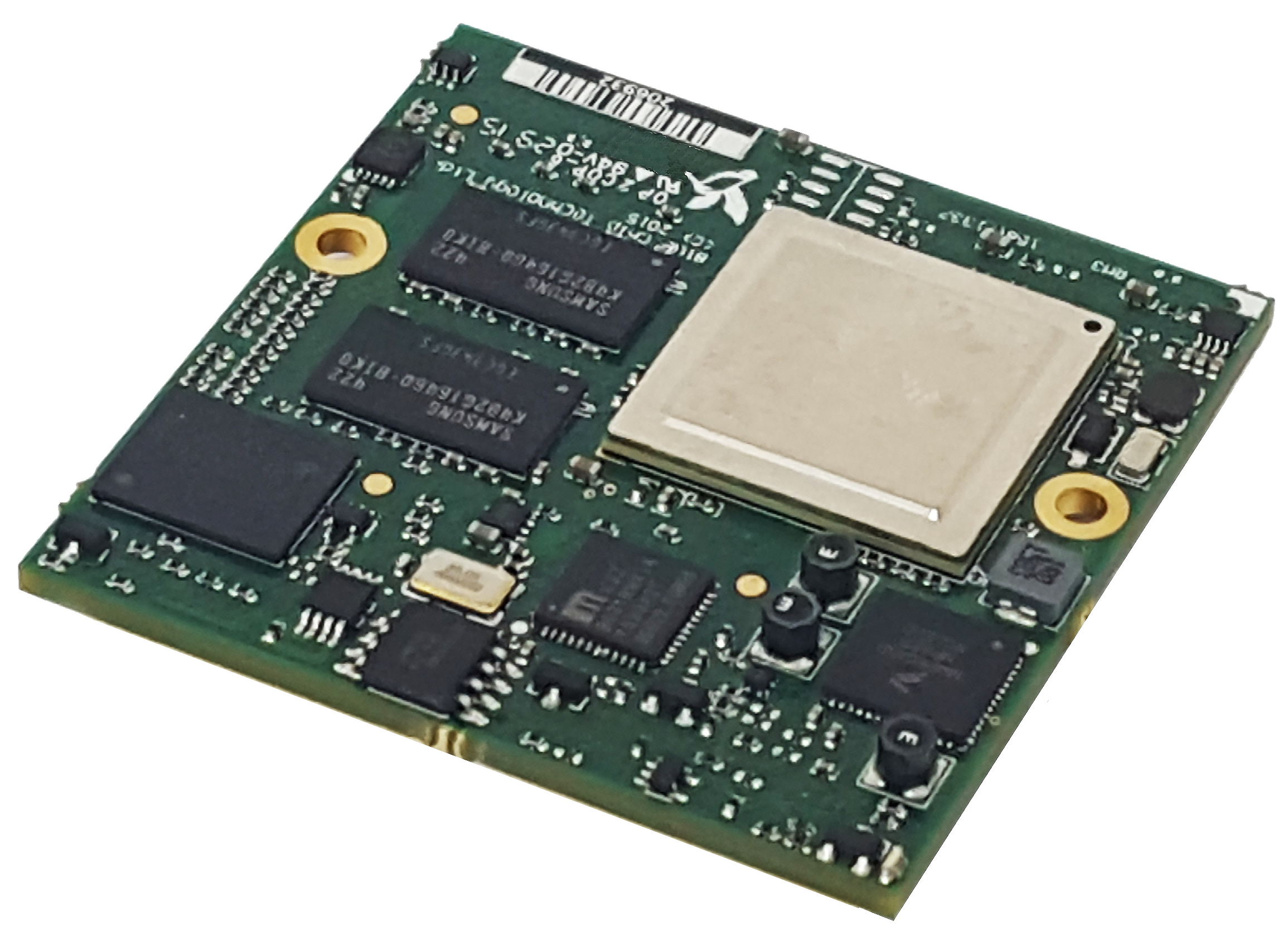

CHARM Module Embedded tracker module |

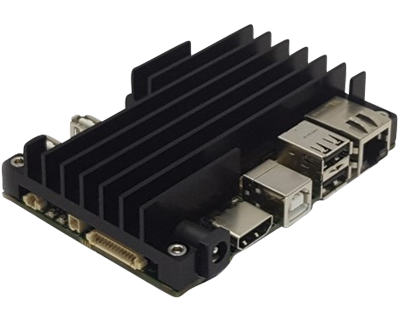

CHARM70 (EOL) Standalone video tracker board |

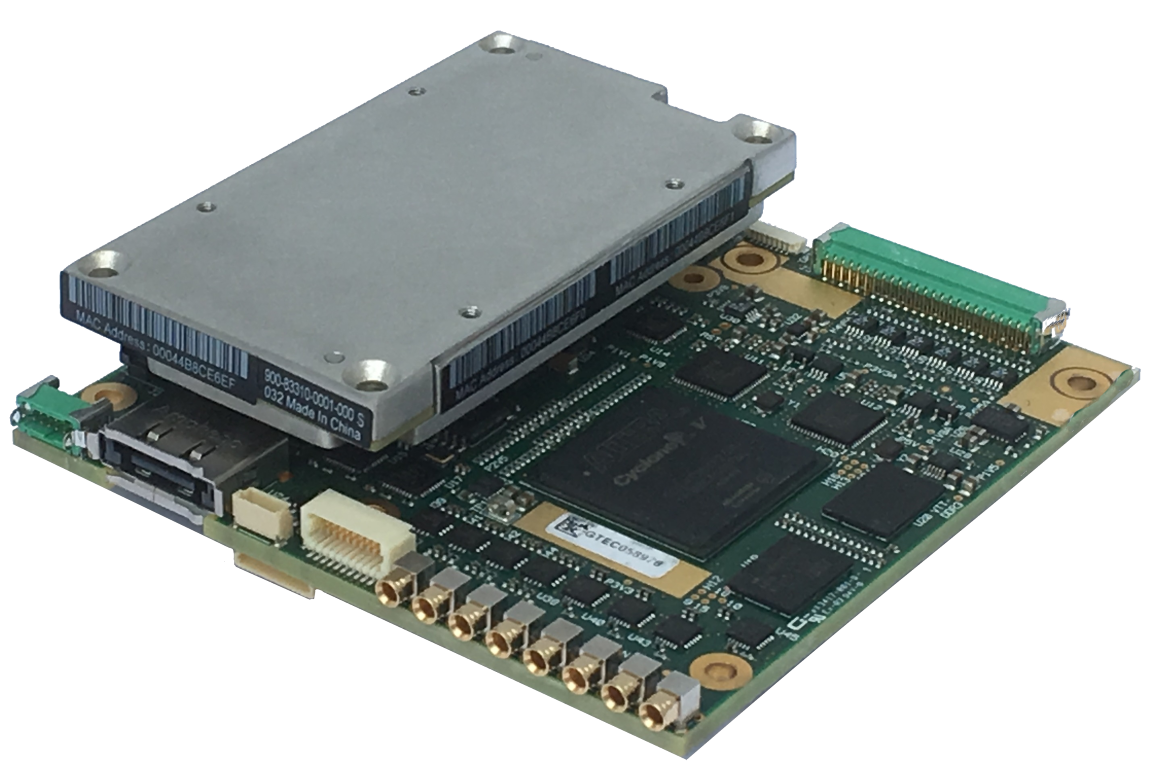

CHARM100 (EOL) Standalone video processor board |
|
Size: 50mm x 50mm Processing Channels: 1 Video Inputs: 1 x Parallel Digital Video Outputs: 1 x Parallel, 1 x HDMI Data Interfaces: 2 x UART, 1 x Ethernet |
Size: 70mm x 100mm Processing Channels: 1 Video Inputs: 2 x PAL/NTSC Video Outputs: 1 x HDMI Data Interfaces: 1 x RS232, 1 x RS422, 1 x Ethernet |
Size: 100mm x 100mm Processing Channels: 2 Video Inputs: 4 x PAL/NTSC, 2 x YPrPb, 4 x 3G-SDI Video Outputs: 4 x PAL/NTSC, 2 x YPrPb, 4 x 3G-SDI Data Interfaces: 4 x RS422, 1 x Ethernet |
|
|
|
|
|

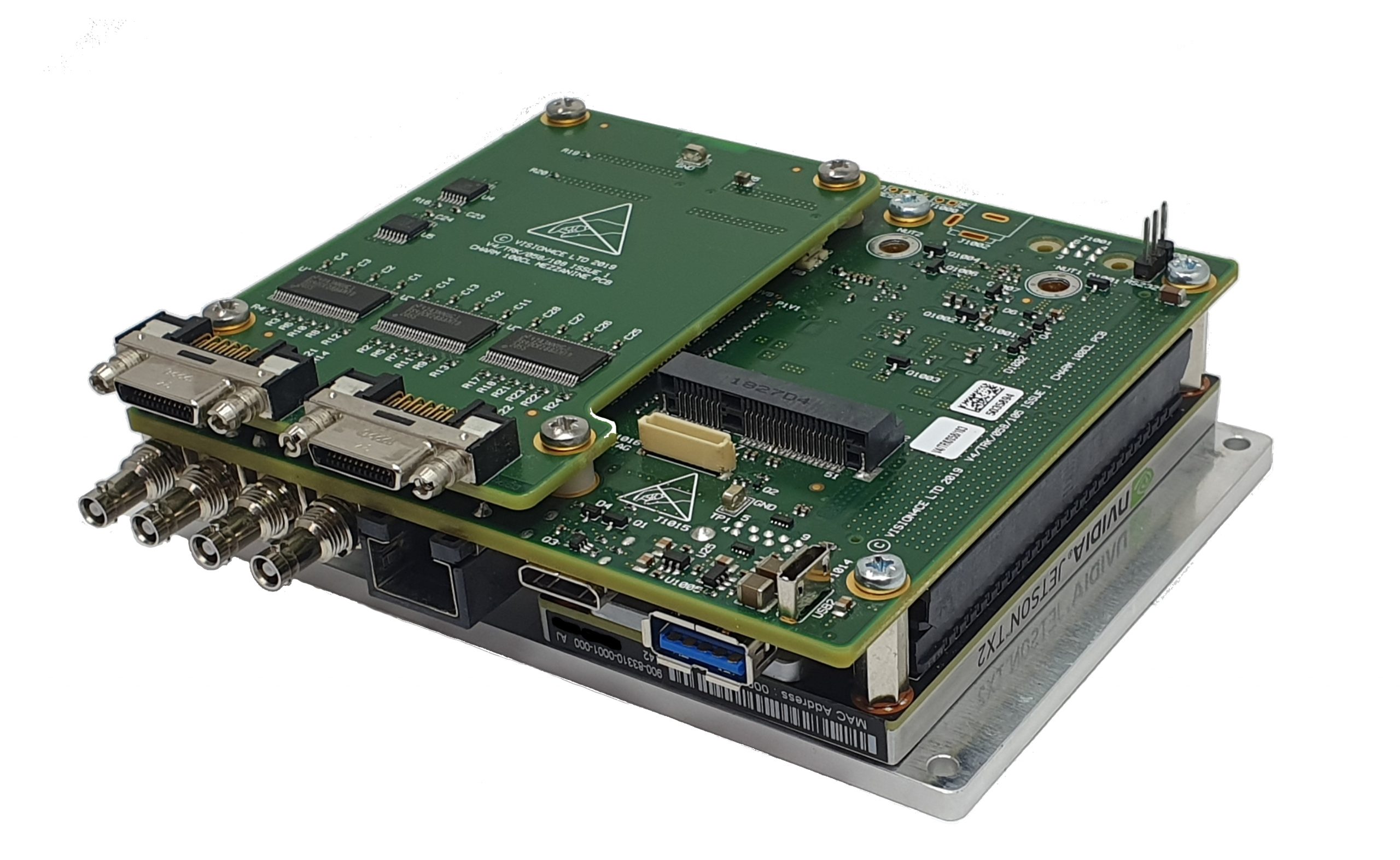

CHARM100CL (EOL) Standalone video processor board |

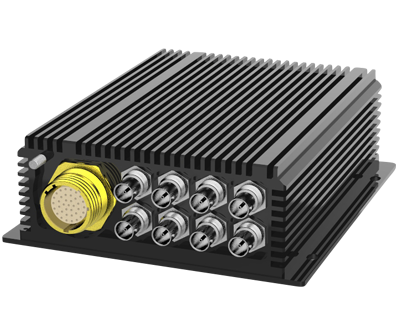

CHARM100 Enclosure (EOL) Standalone video processor unit |

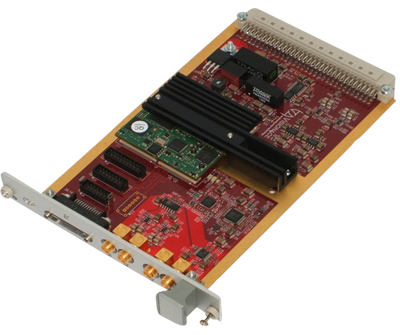

CHARM3U (EOL) 3U Video Tracker Board |
|
Size: 100mm x 100mm Processing Channel: 2 Video Inputs: 2 x SD/HD/3G-SDI, 1 X CameraLink, (Base, Medium, Full) Video Outputs: 2 x SD/HD/3G-SDI Data Interfaces: 3 x RS422, Ethernet, IRIG, CANbus |
Size: 178mm x 156mm x 57mm Processing Channels: 2 Video Inputs: 2x PAL/NTSC, 2x 3G/SDI Video Outputs: 2x PAL/NTSC, 2x 3G/SDI Data Interfaces: 4 x RS422, 1 x Ethernet |
Size: Single Eurocard Processing Channels: 1 Video Inputs: 2 x PAL/NTSC Video Outputs: 2 x PAL/NTSC Data Interfaces: 2 x RS232, 2 x RS422, 1 x Ethernet |
|
|
 |
 |
|

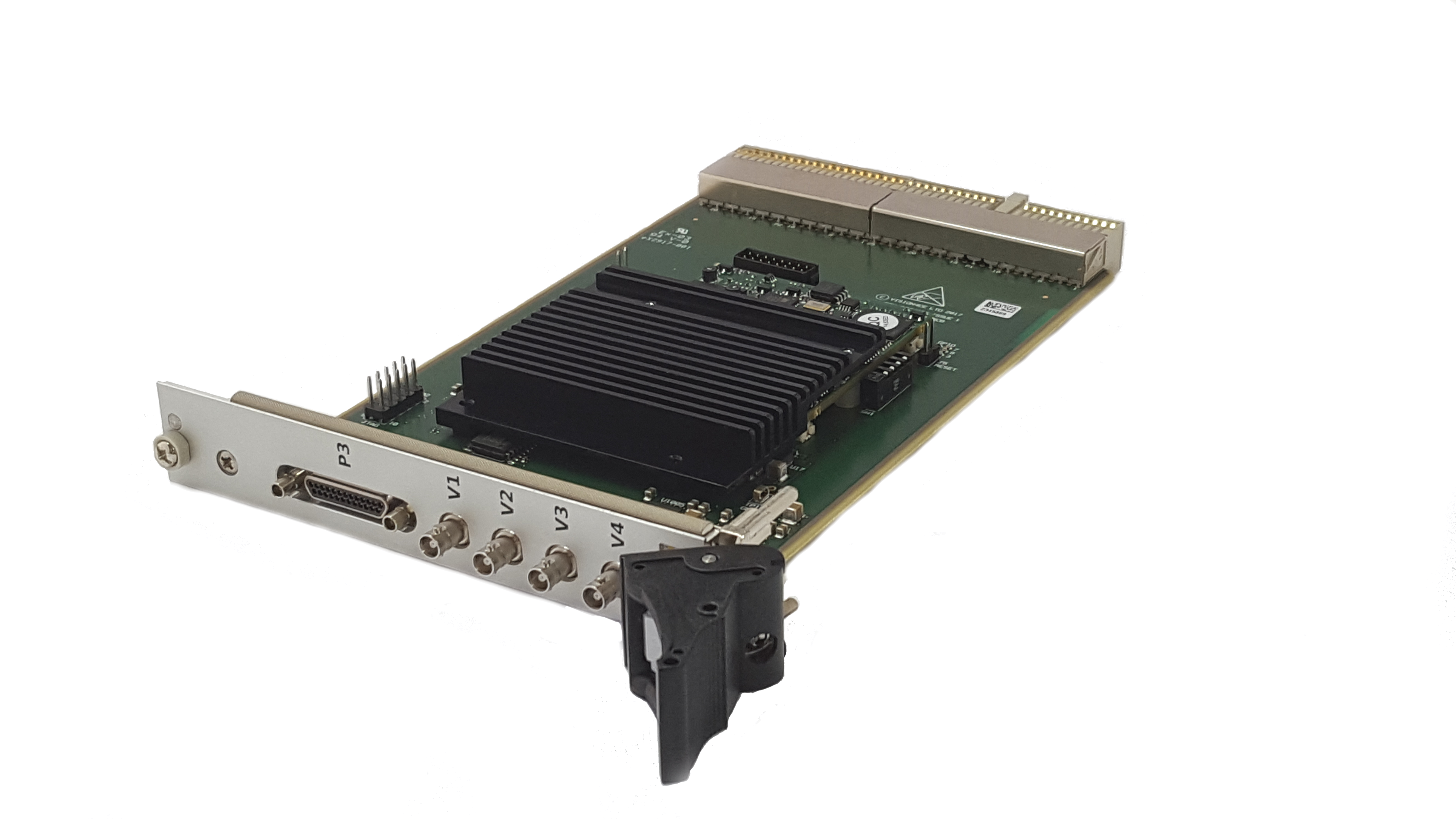

CHARM3U cPCI 3U Video Tracker Board |
CHARM6U VME 6U VME video tracker board |
CHARM10CE Standalone video tracker board |
|
Size: 3U x 160mm Processing Channels: 1 Video Inputs: 2 x PAL/NTSC or 2 X HD-SDI Video Outputs: 2 x PAL/NTSC Data Interfaces: 2 x RS232, 2 x RS422, Ethernet, VME |
Size: Double Eurocard Processing Channels: 1 Video Inputs: 2 x PAL/NTSC, 2 x HD-SDI Video Outputs: 2 x PAL/NTSC, 2 x HD-SDI Data Interfaces: 2 x RS232, 2 x RS422, 1 x Ethernet, VME |
Size: 84mm x 55mm Processing Channels: 2 Video Inputs: 2 x PAL/NTSC, 1 x YPbPr, 1 x SD/HD/3G SDI Video Outputs: 2 x PAL/NTSC, 1 x YPbPr, 1 x SD/HD/3G SDI Data Interfaces: Ethernet, 2 x RS232/RS422 or RS485 |
|
|
|
|
|
CHARM10CE Enclosure Standalone video processor unit |
|
|
|
Size: 178mm x 144mm x 49mm Processing Channels: 1 Video Inputs: 2 x PAL/NTSC Video Outputs: 2 x PAL/NTSC Data Interfaces: 2 x RS232, 2 x RS422, 1 x Ethernet |
|
|
