Vision4ce offers both hardware and software solutions for video tracking. FrameWorkx is a software based video tracker that can run on either a Linux or Windows platform based on Intel or ARM processors.
The Vision4ce CHARM hardware products are based on the FrameWorkx software which is hosted on an embedded board which uses a multicore ARM processor module. A range of board form factors are available with a variety of video interfaces supported including PAL, NTSC, YPbPr, HD-SDI, CameraLink, CoaxPress, and Ethernet for connection to the imaging sensors.
A video tracker analyses video image sequences from a sensor system, mounted on a servo controlled pedestal to keep the camera pointing at the nominated person or object. In this context the tracker has two functions, detecting and locating objects of interest in the video image, and controlling the platform (pan & tilt) position and rate such that the camera follows the designated object.
KEY FEATURES
Multiple object detection and tracking
Centroid and edge measurement
Feature based correlation algorithm
Moving object detection
Adaptive background removal
Automatic coast
Grey level invariant algorithms
Robust clutter rejection
OPTIONAL FEATURES
Video compression, streaming and recording
Electronic image stabilisation
Servo platform control
Target classification
Image fusion
Image enhancement
Note: For new Vision4ce tracker projects, a 1st off licence fee is included for project support, this provides technical assistance for implementation with one of our accredited engineers. Successful tracker implementation requires a solutions based approach with customer interaction.
We are committed to your success!
 |
 |
 |
|
Charm - 80 Standalone video tracker board |

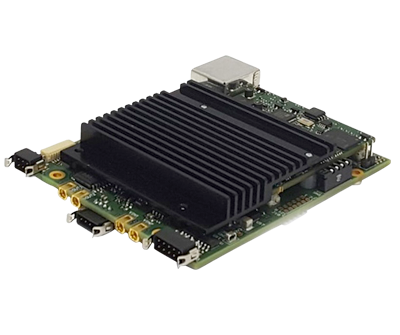

CHARM – 80SDI Standalone video tracker board |

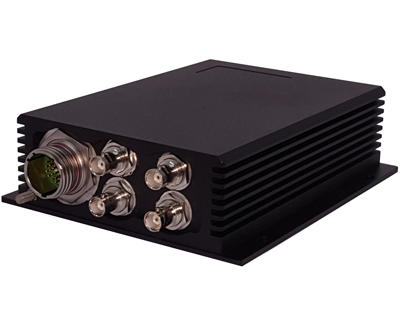

CHARM – 80 Enclosure Standalone video tracker unit |
|
Size: 80mm x 90mm Processing Channels: 1 Video Inputs: 2 x PAL/NTSC Video Outputs: 2 x PAL/NTSC Data Interfaces: 2 x RS232, 2 x RS422, Ethernet |
Size: 80mm x 90mm Processing Channels: 1 Video Inputs: 2 x HD-SDI Video Outputs: 2 x HD-SDI Data Interfaces: 2 x RS232, 2 x RS422, Ethernet |
Size: 178mm x 144mm x 49mm Processing Channels: 1 Video Inputs: 2 x PAL/NTSC or HD-SDI Video Outputs: 2 x PAL/NTSC or HD-SDI Data Interfaces: 2 x RS232, 2 x RS422, Ethernet |
|
|
|
|
|

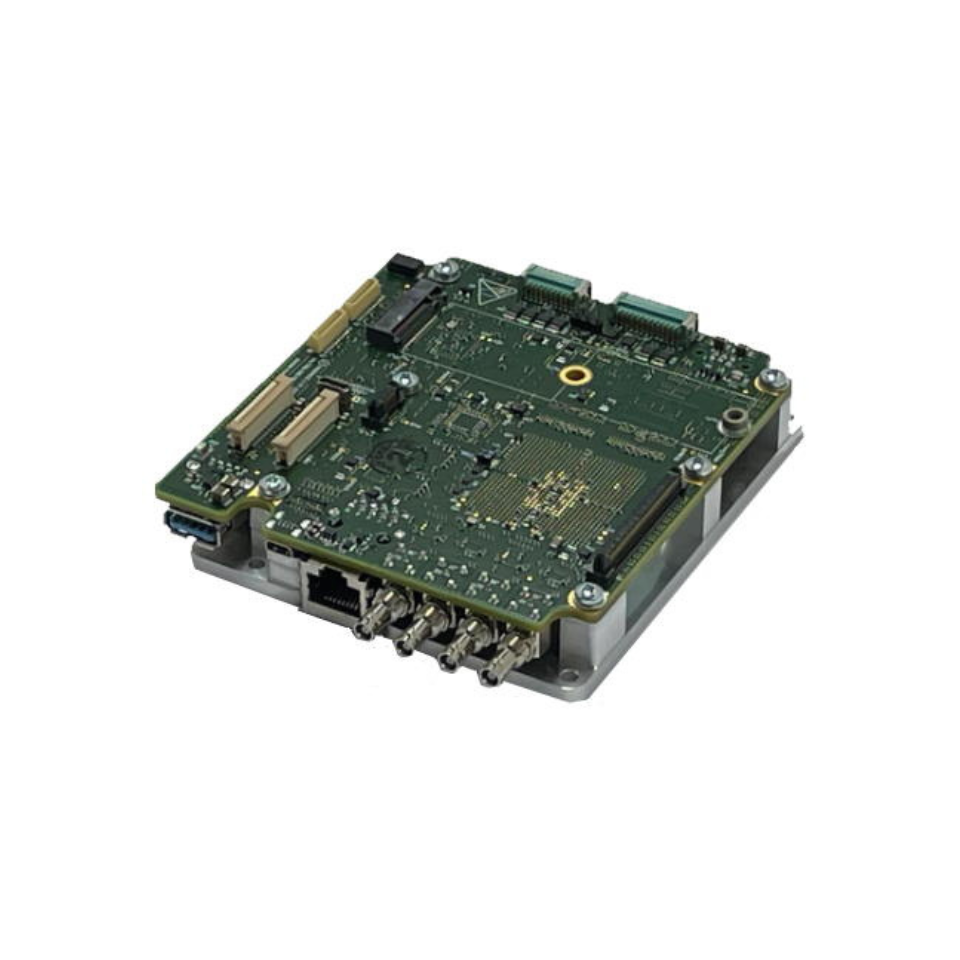

CHARM – 100NX Video Processor Board |

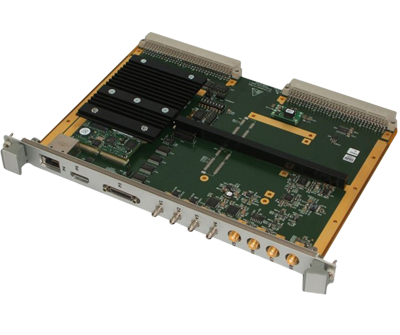

CHARM6UNX |

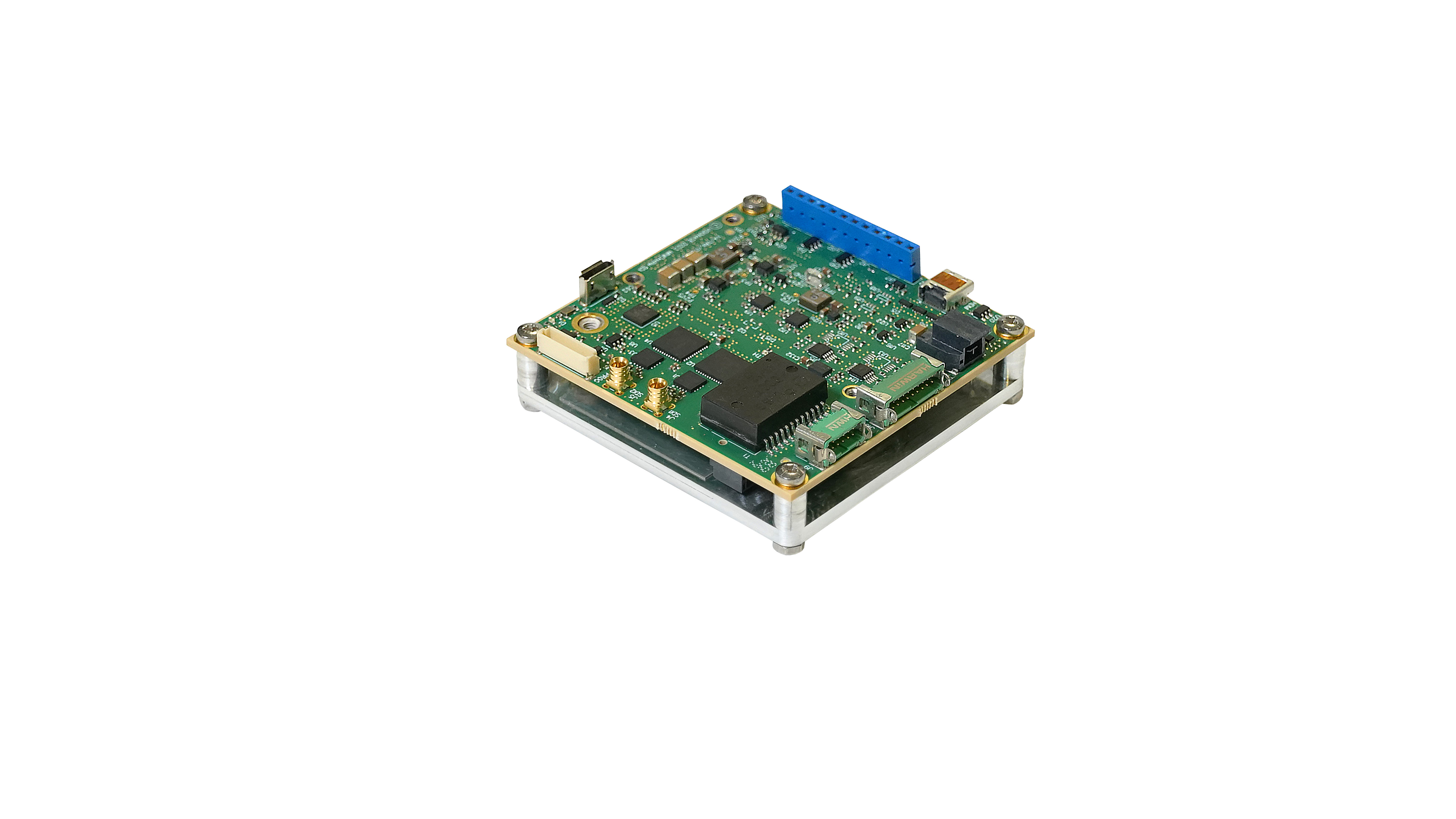

MiniCHARM-SDI Compact Processing Module 65mm x 63mm x 18mm
|
|
Size: 100mm x 100mm x 20mm Processing Channels: 2 Video Inputs: 2 x SD/HD/3G Video Outputs: 2 x SD/HD/3G Data Interfaces: 4 x RS422, Ethernet, CAN bus, IRIG, 8 x GPIO Optional Interfaces |
Size: Double Eurocard |
Size: 65mm x 63mm x 18mm Video Inputs: SD-SDI, HD-SDI,3G-SDI 480i60,576i50,720p 50/59.94/60,1080p25/ 29.97/30, 1080i50/59.94/ Data Interfaces: • 2 x RS232/RS422 serial interfaces (build option) Expansion Slot: 1 x M.2 PCIe slot, key M, 2242 |
|
|
|
|
|

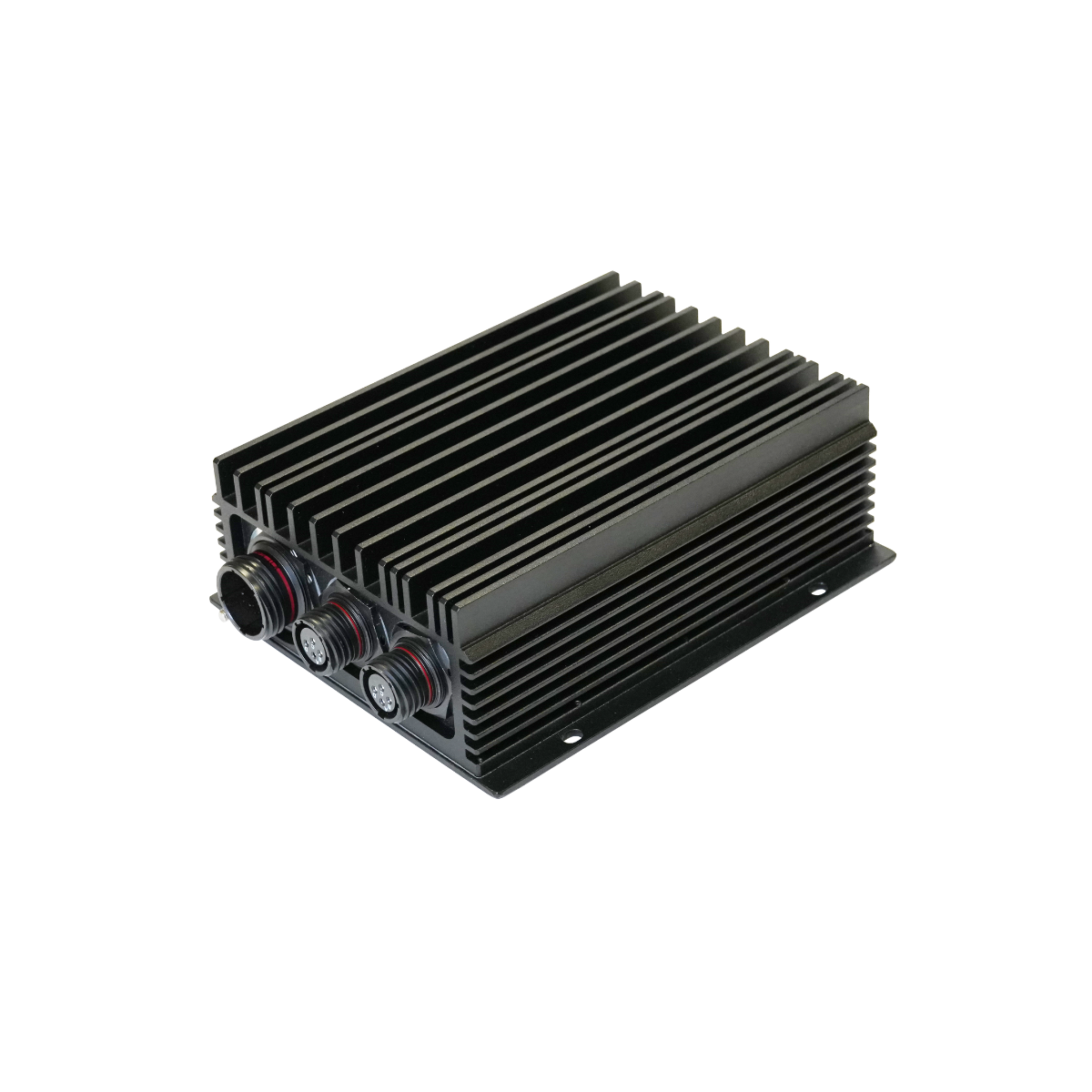

CHARM – 100NX Enclosure Video Tracker module |

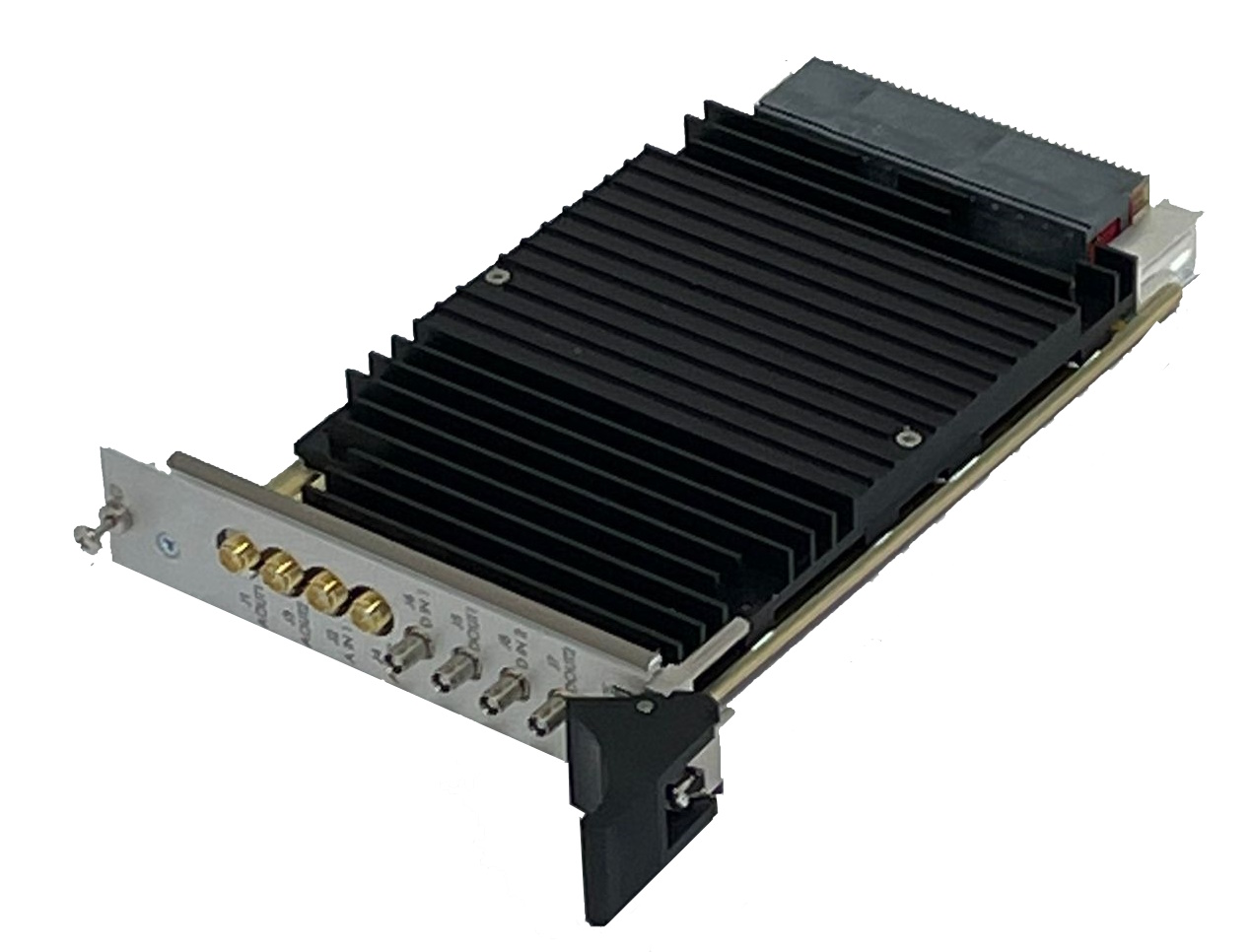

CHARM3UVPX Video Processor Board |
|
|
Size: Processing Channels: 2 Video Inputs: 2 x SD/HD/3G/6G SDI Video Outputs: 2 x SD/HD/3G/6G SDI Data Interfaces: 4 x RS422, Ethernet, CAN bus, IRIG, 8 x GPIO Optional Interfaces |
Size: Single Eurocard Processing Channels: 2 Video Inputs: 2 x PAL/NTSC, 2 x SD/HD/3G-SDI Video Outputs: 2 x PAL/NTSC, 2 x SD/HS/3G-SDI Data Interfaces: 4 x RS422, Ethernet, VMEbus, IRIG |
|
